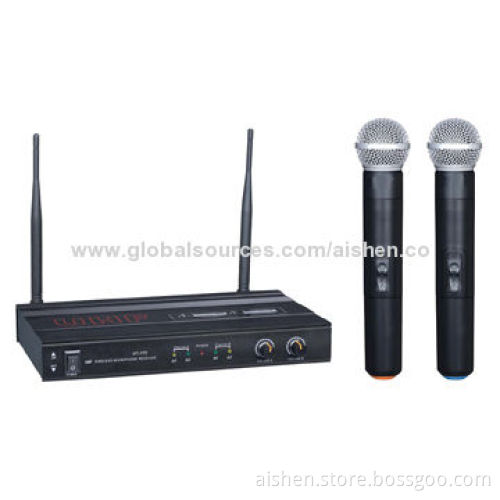

UHF Wireless Microphone with High Quality

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

System:

Receiver:

Transmitter:

Audio frequency response: 80-12000Hz

Dynamic range: ≥80dB

System distortion: ≤1%

Signal to noise ratio: ≥80dB

Operating range: approximately 80m

Operating temperature range: 5-45°C

Carrier frequency range: 740-790MHz

Receiving system: diversity receiver

Sensitivity (S/N = 30dB): >2mV

Image rejection: >60dB

De-emphasis: 50μs

Audio output impedance: 600Ω

Audio output level: 1.1V

Power supply: AC 220-240V 50/60hz

Current consumption: ≤300mA

Dimensions: 480x 220 x 45mm

Weight: approximately 2700g

Frequency stability: ±0.001%

RF output power: ≤30mW

Spurious rejection: >50dB

Modulation mode: FM

Maximum deviation range: ±45kHz

Microphone mode: dynamic

Pre-emphasis: 50μs

Power supply: DC 3V (AA1.5V x 2)

Current consumption: ≤40mA

Dimensions: Ø35 x 270mm

Weight: approximately 250g (no battery)
