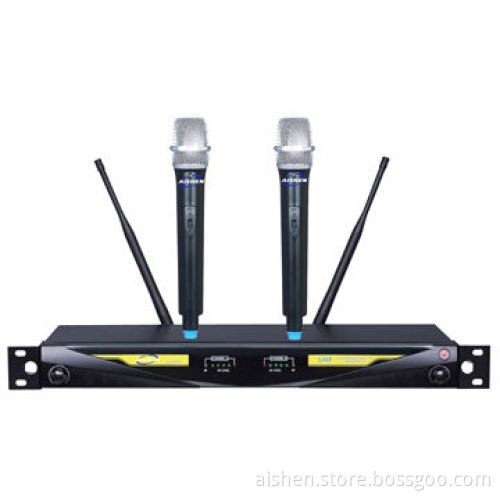

UHF Wireless Microphone with Working Distance of 200 Feet

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

IU-2072:

Carrier wave frequency range: UHF 600 to 870MHz

Oscillation mode: quartz controlled fixed frequency

Carrier wave stability: 10PPM

Sensitivity: -105dB at sinad = 12dB

S/N ration: >105dB

THD: <0.5%, 1kHz

Image rejection: 85dB typical

Spurious rejection: 75dB typical

Frequency response: 40Hz to 18KHz

Working distance: 200 feet

Squelch control: dual-squelch circuit, AF output impedance: 2.2KΩ

Maximum output level: balance 0 to 400mV, unbalance 0 to 200mV

Display: LCD

Power supply: external DC power supply, 0.35A, 12 to 18V DC

Output connector: 2 XLR balanced socket, unbalance TRs, 6.35mm socket

Dimensions (mm): 420(L)x45(H)x195(D)
