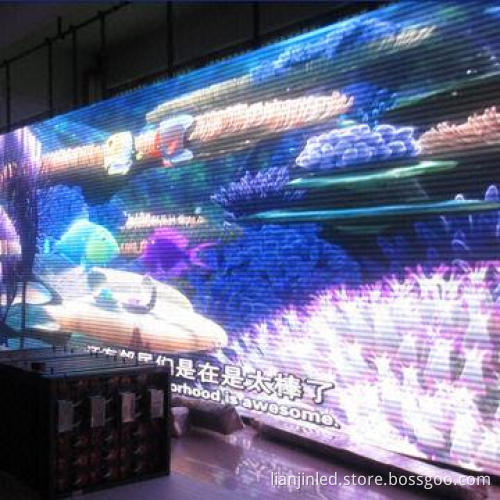

LED Display Sign with SMD 3-in-1 and 8mm Pixel Pitch, 150/120 Degrees Viewing Angle
  • LED Display Sign with SMD 3-in-1 and 8mm Pixel Pitch, 150/120 Degrees Viewing Angle
LED Display Sign with SMD 3-in-1 and 8mm Pixel Pitch, 150/120 Degrees Viewing Angle

LED Display Sign with SMD 3-in-1 and 8mm Pixel Pitch, 150/120 Degrees Viewing Angle

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Pixel pitch: 8mm
    • SMD 3-in-1
    • Pixel construction: one chip with 3 colors (3-in-1)
    • Module resolution (L x H): 32 x 16mm = 512 pixel dots
    • Brightness of white: 1,500cd/sq.m at least
    • The optimal viewing distance: 5 to 38m
    • Grey scale: 10-bit/1,024-level
    • Display color: 1,024 x 1,024 x 1,024 = 1 billion
    • Viewing angle (H/V): 150/120 degrees
    • Refresh rate: 240Hz at least
    • Driving mode: constant driving 1/8 scan
    • Brightness adjustment: 0 to 100% with 8 levels automatic
    • Gamma correction: (-5.0 to 5.0)
    • Correction scale level: 16 bits
    • Frame frequency: 60 to 85Hz
    • Color temperature: 5,000 to 9,300K (control by the software)
    • Input source support: S-video/VGA/DVI/SDI/HD-SDI
    • Lifetime: 100,000 hours at least
    • MTBF: 5,000 hours at least
    • Out of control rate: 3/10,000 at most
  • Pixel pitch: 8mm
  • SMD 3-in-1
  • Pixel construction: one chip with 3 colors (3-in-1)
  • Module resolution (L x H): 32 x 16mm = 512 pixel dots
  • Brightness of white: 1,500cd/sq.m at least
  • The optimal viewing distance: 5 to 38m
  • Grey scale: 10-bit/1,024-level
  • Display color: 1,024 x 1,024 x 1,024 = 1 billion
  • Viewing angle (H/V): 150/120 degrees
  • Refresh rate: 240Hz at least
  • Driving mode: constant driving 1/8 scan
  • Brightness adjustment: 0 to 100% with 8 levels automatic
  • Gamma correction: (-5.0 to 5.0)
  • Correction scale level: 16 bits
  • Frame frequency: 60 to 85Hz
  • Color temperature: 5,000 to 9,300K (control by the software)
  • Input source support: S-video/VGA/DVI/SDI/HD-SDI
  • Lifetime: 100,000 hours at least
  • MTBF: 5,000 hours at least
  • Out of control rate: 3/10,000 at most
