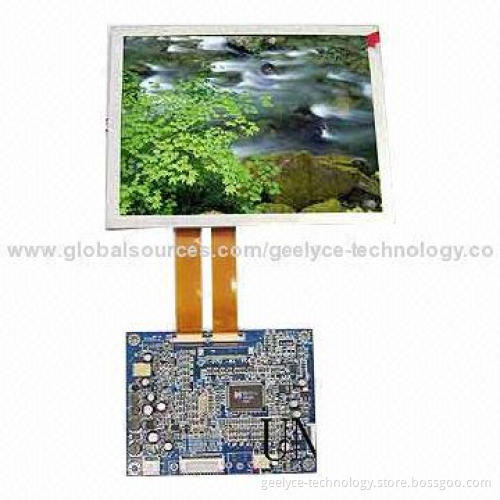

LCD Controller Board with 8-inch, Multifunction, LED Backlight

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Display size: 8.0-inch
Aspect ratio: 4:3
Viewing angle: 45/60/55/55°
Resolution (H x V): 800 x RGB x 600P
Contrast ratio: 500:1
Brightness: 250cd/m²
Interface type: dual 30-pin digital (TTL)
Backlight: LEDs
Response time: 30ms
Working temperature: -20-80℃
AT080TN42 LCD panels using sophisticated MSTAR717 scheme, realistic display
Production is widely used in instrumentation, industrial control, medical equipment, video intercom, security monitoring, cars, bank notes and acceptance device, supermarket cashiers, and many other occasions (this is the effect of a very high-cost of the module, the price of the analog screen, digital screen)
VGA, CVBS1, CVBS2, S-Video (optional) video signal input
Multi OSD operating, support reversing switch function
With remote control (optional)
Startup, shutdown status indicator (green for power, red for the shutdown)

Display size: 8.0-inch

Aspect ratio: 4:3

Viewing angle: 45/60/55/55°

Resolution (H x V): 800 x RGB x 600P

Contrast ratio: 500:1

Brightness: 250cd/m²

Interface type: dual 30-pin digital (TTL)

Backlight: LEDs

Response time: 30ms

Working temperature: -20-80℃

AT080TN42 LCD panels using sophisticated MSTAR717 scheme, realistic display

Production is widely used in instrumentation, industrial control, medical equipment, video intercom, security monitoring, cars, bank notes and acceptance device, supermarket cashiers, and many other occasions (this is the effect of a very high-cost of the module, the price of the analog screen, digital screen)

VGA, CVBS1, CVBS2, S-Video (optional) video signal input

Multi OSD operating, support reversing switch function

With remote control (optional)

Startup, shutdown status indicator (green for power, red for the shutdown)
