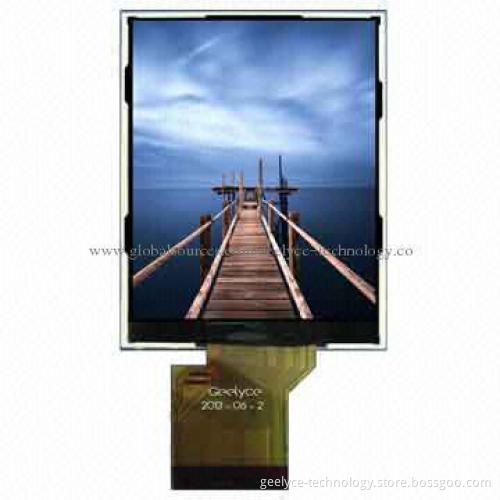

2.7-inch (16:9) TFT LCD Module with 960 x 240 Pixels Resolution, RGB Interface, LED Backlight

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Screen size: 2.7 inches (diagonal)
Drive IC: ILI8961
Resolution (W x H): 960 x 240 pixels
Display modes: normally white, transmissive
Driver element: a-Si TFT active matrix
Color depth: 16M
Viewing direction: 3'O clock
Viewing angle: L15/U45/R35/B45°
Brightness: 250cd/m²
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
Color configuration RGB vertical stripe
Backlight unit: LED x 3 pieces
Interface: 8-bit RGB interface
Touch panel: without
Comes with RoHS Directive-compliant
Compatible with NTSC and PAL systems
Dimensions:
- Outline (W x H x T): 39.10 x 67.50 x 2.4mm
- Active area (W x H): 33.06 x 58.80mm

Applications:

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfers/medical instruments/security managements/signs and displays/point of sales, EPOS/energy controls/amusement and gambling machines/white goods and more

Screen size: 2.7 inches (diagonal)

Drive IC: ILI8961

Resolution (W x H): 960 x 240 pixels

Display modes: normally white, transmissive

Driver element: a-Si TFT active matrix

Color depth: 16M

Viewing direction: 3'O clock

Viewing angle: L15/U45/R35/B45°

Brightness: 250cd/m²

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Color configuration RGB vertical stripe

Backlight unit: LED x 3 pieces

Interface: 8-bit RGB interface

Touch panel: without

Comes with RoHS Directive-compliant

Compatible with NTSC and PAL systems

Dimensions:

Outline (W x H x T): 39.10 x 67.50 x 2.4mm
Active area (W x H): 33.06 x 58.80mm

Outline (W x H x T): 39.10 x 67.50 x 2.4mm

Active area (W x H): 33.06 x 58.80mm

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfers/medical instruments/security managements/signs and displays/point of sales, EPOS/energy controls/amusement and gambling machines/white goods and more
