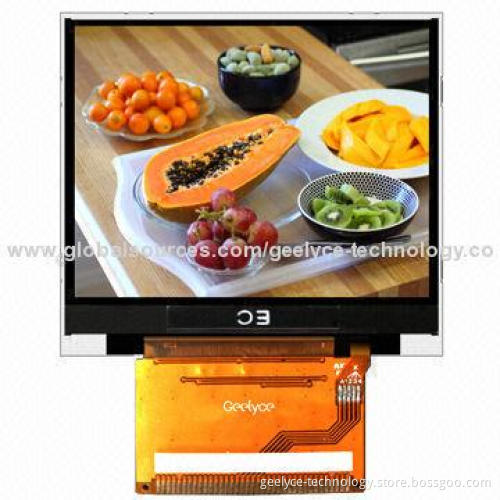

2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
  • 2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution
2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution

2.31-inch TFT Panel with LED Backlight, 8/16-bit Interface and 320 x RGB x 240P Resolution

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Screen size: 2.31-inch (diagonal)
    • Resolution (W x H): 320 x RGB x 240 pixels
    • Display mode: normally white, transmissive
    • Driver element: a-Si TFT active matrix
    • Color depth: 262K
    • Viewing direction: 12'O clock
    • Viewing angle: 60/60/60/35°
    • Brightness: 200cd/m2
    • Color configuration RGB vertical stripe
    • Backlight units: LED x 4 pieces
    • Interface: MCU 80-system 8/16-bit data bus 40-pin and SPI
    • Touch panel: without (touch panel mode for wire resistance and optional)
    • Drive IC: ILI9342C
    • Dimensions:
      • Outline (W x H x T): 50.80 x 45.60 x 2.25mm
      • Viewing area (W x H): 46.75 x 35.06mm
      • Active area (W x H): 46.75 x 35.06mm
      • Pixel pitch (W x H): 0.0727 x 0.219mm
      • Dots size (W x H): 0.0607 x 0.207mm
  • Screen size: 2.31-inch (diagonal)
  • Resolution (W x H): 320 x RGB x 240 pixels
  • Display mode: normally white, transmissive
  • Driver element: a-Si TFT active matrix
  • Color depth: 262K
  • Viewing direction: 12'O clock
  • Viewing angle: 60/60/60/35°
  • Brightness: 200cd/m2
  • Color configuration RGB vertical stripe
  • Backlight units: LED x 4 pieces
  • Interface: MCU 80-system 8/16-bit data bus 40-pin and SPI
  • Touch panel: without (touch panel mode for wire resistance and optional)
  • Drive IC: ILI9342C
  • Dimensions:
    • Outline (W x H x T): 50.80 x 45.60 x 2.25mm
    • Viewing area (W x H): 46.75 x 35.06mm
    • Active area (W x H): 46.75 x 35.06mm
    • Pixel pitch (W x H): 0.0727 x 0.219mm
    • Dots size (W x H): 0.0607 x 0.207mm
  • Outline (W x H x T): 50.80 x 45.60 x 2.25mm
  • Viewing area (W x H): 46.75 x 35.06mm
  • Active area (W x H): 46.75 x 35.06mm
  • Pixel pitch (W x H): 0.0727 x 0.219mm
  • Dots size (W x H): 0.0607 x 0.207mm
