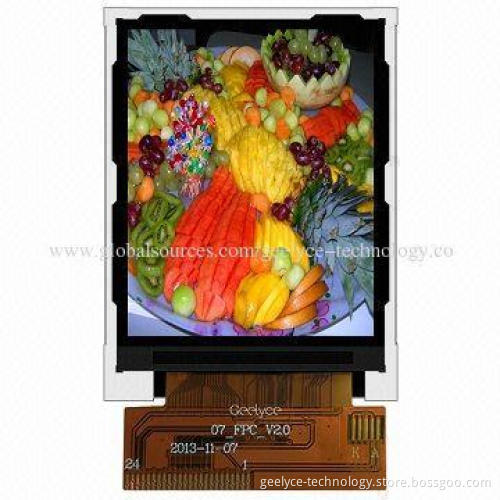

2.7-inch TFT LCD Panel, 320 RGB x 240P Resolution, 8-bit RGB Interface and LED Backlight

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key specifications:

Screen size: 2.7 inches (diagonal)
Resolution (W x H): 320 x RGB x 240 pixels
Display mode: normally white, transmissive
Driver element: a-Si TFT active matrix
Color depth: 16M
Viewing direction: 12'O clock
Viewing angle: 60/35°
Brightness: 250cd/m²
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
Color configuration RGB vertical stripe
Backlight unit: LED x 2 pieces
Interface: MCU 80-system 8/16-bit data bus 40-pin
Touch panel: without (touch panel mode for wire resistance and optional)
With the RoHS Directive-compliant
Compatible with NTSC and PAL systems
Dimensions:
- Outline (W x H x T): 63.50 x 46.60 x 2.60mm
- Active area (W x H): 56.25 x 68.75mm
- Pixel pitch (W x H): 0.0727 x 0.219mm
- Dots size (W x H): 0.0607 x 0.207mm

Applications:

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfers/medical instruments/security managements/signs and displays/point of sales, EPOS /energy controls/amusement and gambling machines/white goods

Screen size: 2.7 inches (diagonal)

Resolution (W x H): 320 x RGB x 240 pixels

Display mode: normally white, transmissive

Driver element: a-Si TFT active matrix

Color depth: 16M

Viewing direction: 12'O clock

Viewing angle: 60/35°

Brightness: 250cd/m²

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Color configuration RGB vertical stripe

Backlight unit: LED x 2 pieces

Interface: MCU 80-system 8/16-bit data bus 40-pin

Touch panel: without (touch panel mode for wire resistance and optional)

With the RoHS Directive-compliant

Compatible with NTSC and PAL systems

Dimensions:

Outline (W x H x T): 63.50 x 46.60 x 2.60mm
Active area (W x H): 56.25 x 68.75mm
Pixel pitch (W x H): 0.0727 x 0.219mm
Dots size (W x H): 0.0607 x 0.207mm

Outline (W x H x T): 63.50 x 46.60 x 2.60mm

Active area (W x H): 56.25 x 68.75mm

Pixel pitch (W x H): 0.0727 x 0.219mm

Dots size (W x H): 0.0607 x 0.207mm

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfers/medical instruments/security managements/signs and displays/point of sales, EPOS /energy controls/amusement and gambling machines/white goods
