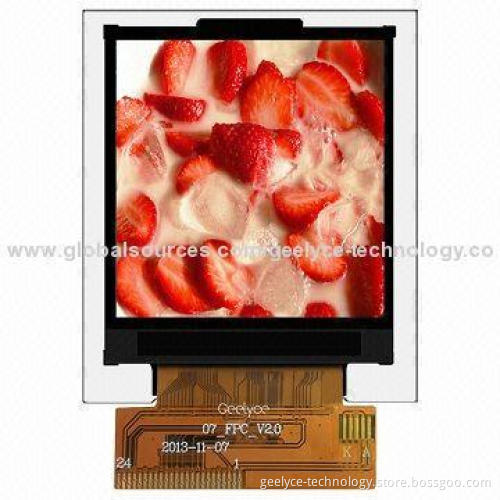

1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
  • 1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
  • 1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
  • 1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
  • 1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
  • 1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight
1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight

1.44-inch TFT LCD Panel, 128 RGB x 128P Resolution, 8/16-bit Interface and LED Backlight

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Screen size: 1.44-inch (diagonal)
    • Resolutions (W x H): 128 x RGB x 128 pixels
    • Display modes: normally white, transmissive
    • Driver element: a-Si TFT active matrix
    • Color depth: 262K
    • Viewing direction: 12'O clock
    • Viewing angle: (L/R/U/D) 50/50/50/30 degrees
    • Brightness: 200cd/m²
    • Color configuration RGB vertical stripe
    • Backlight unit: LED x 2 pieces
    • Interface: MCU 80-system 8-bit data bus 18-pin
    • Touch panel: without (touch panel mode for wire resistance/optional)
    • Drive IC ST7735R
    • Dimensions:
      • Outline (W x H x T): 30.30 x 34.41 x 2.4mm
      • Viewing area (W x H): 25.49 x 26.49mm
      • Active area (W x H): 25.49 x 26.49mm
      • Pixel pitch (W x H): 0.0727 x 0.219mm
      • Dots size (W x H): 0.0607 x 0.207mm
  • Screen size: 1.44-inch (diagonal)
  • Resolutions (W x H): 128 x RGB x 128 pixels
  • Display modes: normally white, transmissive
  • Driver element: a-Si TFT active matrix
  • Color depth: 262K
  • Viewing direction: 12'O clock
  • Viewing angle: (L/R/U/D) 50/50/50/30 degrees
  • Brightness: 200cd/m²
  • Color configuration RGB vertical stripe
  • Backlight unit: LED x 2 pieces
  • Interface: MCU 80-system 8-bit data bus 18-pin
  • Touch panel: without (touch panel mode for wire resistance/optional)
  • Drive IC ST7735R
  • Dimensions:
    • Outline (W x H x T): 30.30 x 34.41 x 2.4mm
    • Viewing area (W x H): 25.49 x 26.49mm
    • Active area (W x H): 25.49 x 26.49mm
    • Pixel pitch (W x H): 0.0727 x 0.219mm
    • Dots size (W x H): 0.0607 x 0.207mm
  • Outline (W x H x T): 30.30 x 34.41 x 2.4mm
  • Viewing area (W x H): 25.49 x 26.49mm
  • Active area (W x H): 25.49 x 26.49mm
  • Pixel pitch (W x H): 0.0727 x 0.219mm
  • Dots size (W x H): 0.0607 x 0.207mm
