Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
  • Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
  • Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
  • Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
  • Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In
Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In

Micro Embedded Board Computer, C1037 CPU, 5xUSB, COM, GLAN, VGA, HDMI, LVDS, 12V DC In

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description

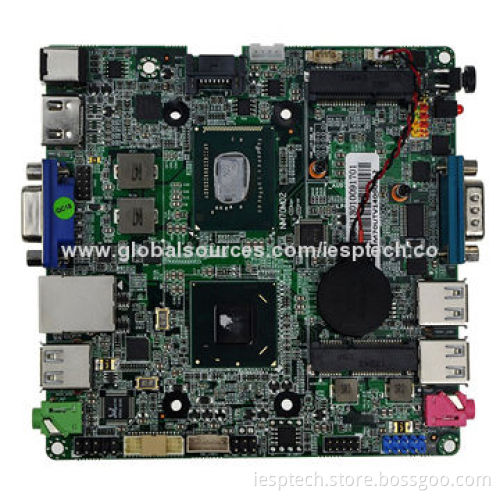

  • IESP-6338 (GLAN/COM/5U)
  • Micro industrial motherboard
  • Specifications:
    • System:
      • Processor: Intel Celeron 1037 dual-core (1.8GHz)
      • Chipset: Intel NM70 Express chipset
      • Memory: 1x DDR3 1333/1066MHz SO-DIMM
      • BIOS: AMI 32M BIOS, ACPI support
      • Watch dog timer: 0-255 seconds/minute
    • Display:
      • Graphics core: integrated Intel HD graphics
      • Display memory: DVMT dynamic video memory
      • Display interface: HDMI, LVDS, VGA
      • Asynchronous dual-display: supported
    • Ethernet:
      • Network chip: RT8111E Gigabit LAN controller
      • Network interface: 1 x RJ45
    • Audio:
      • Codec: Realtek ALC662 HD audio
      • Audio interface: line-out, mic-in
    • Storage interface:
      • SATA: 1 x SATA 3.0, 1 x mini SATA
    • I/O interface (Embedded):
      • LVDS: 1 x LVDS optional
      • Audio: 1 x audio pin header (line-in, line-out)
      • USB: 1 x USB pin header (for 2xUSB2.0)
      • SATA: 1x SATA 3.0
      • VGA: 1 x VGA pin header
      • Mini PCI: 1 x mini-PCIe
      • MSATA: 1 x MSATA
      • LED pin header: 1 x HDD LED, 1 x power LED
      • Power switch: 1 x power switch pin header
    • I/O interface (front):
      • USB: 2 x USB2.0
      • COM: 1 x RS232
      • Audio: 1 x line-in
      • Power switch: 1 x power switch
    • I/O interface (rear):
      • VGA: 1 x VGA
      • HDMI: 1 x HDMI
      • USB: 1 x USB2.0
      • Audio: 1 x line-out
      • LAN: 1 x RJ45
      • Power: 1 x 8-19V DC in
  • Other features:
    • Power supply: 8-19V DC in
    • Operating temperature: -10-60°C
    • Storage temperature: -20-70°C
    • Relative humidity: 0-95% RH relative humidity, non-condensing
    • Dimensions: 120 x 120mm
  • System:
    • Processor: Intel Celeron 1037 dual-core (1.8GHz)
    • Chipset: Intel NM70 Express chipset
    • Memory: 1x DDR3 1333/1066MHz SO-DIMM
    • BIOS: AMI 32M BIOS, ACPI support
    • Watch dog timer: 0-255 seconds/minute
  • Display:
    • Graphics core: integrated Intel HD graphics
    • Display memory: DVMT dynamic video memory
    • Display interface: HDMI, LVDS, VGA
    • Asynchronous dual-display: supported
  • Ethernet:
    • Network chip: RT8111E Gigabit LAN controller
    • Network interface: 1 x RJ45
  • Audio:
    • Codec: Realtek ALC662 HD audio
    • Audio interface: line-out, mic-in
  • Storage interface:
    • SATA: 1 x SATA 3.0, 1 x mini SATA
  • I/O interface (Embedded):
    • LVDS: 1 x LVDS optional
    • Audio: 1 x audio pin header (line-in, line-out)
    • USB: 1 x USB pin header (for 2xUSB2.0)
    • SATA: 1x SATA 3.0
    • VGA: 1 x VGA pin header
    • Mini PCI: 1 x mini-PCIe
    • MSATA: 1 x MSATA
    • LED pin header: 1 x HDD LED, 1 x power LED
    • Power switch: 1 x power switch pin header
  • I/O interface (front):
    • USB: 2 x USB2.0
    • COM: 1 x RS232
    • Audio: 1 x line-in
    • Power switch: 1 x power switch
  • I/O interface (rear):
    • VGA: 1 x VGA
    • HDMI: 1 x HDMI
    • USB: 1 x USB2.0
    • Audio: 1 x line-out
    • LAN: 1 x RJ45
    • Power: 1 x 8-19V DC in
  • Processor: Intel Celeron 1037 dual-core (1.8GHz)
  • Chipset: Intel NM70 Express chipset
  • Memory: 1x DDR3 1333/1066MHz SO-DIMM
  • BIOS: AMI 32M BIOS, ACPI support
  • Watch dog timer: 0-255 seconds/minute
  • Graphics core: integrated Intel HD graphics
  • Display memory: DVMT dynamic video memory
  • Display interface: HDMI, LVDS, VGA
  • Asynchronous dual-display: supported
  • Network chip: RT8111E Gigabit LAN controller
  • Network interface: 1 x RJ45
  • Codec: Realtek ALC662 HD audio
  • Audio interface: line-out, mic-in
  • SATA: 1 x SATA 3.0, 1 x mini SATA
  • LVDS: 1 x LVDS optional
  • Audio: 1 x audio pin header (line-in, line-out)
  • USB: 1 x USB pin header (for 2xUSB2.0)
  • SATA: 1x SATA 3.0
  • VGA: 1 x VGA pin header
  • Mini PCI: 1 x mini-PCIe
  • MSATA: 1 x MSATA
  • LED pin header: 1 x HDD LED, 1 x power LED
  • Power switch: 1 x power switch pin header
  • USB: 2 x USB2.0
  • COM: 1 x RS232
  • Audio: 1 x line-in
  • Power switch: 1 x power switch
  • VGA: 1 x VGA
  • HDMI: 1 x HDMI
  • USB: 1 x USB2.0
  • Audio: 1 x line-out
  • LAN: 1 x RJ45
  • Power: 1 x 8-19V DC in
  • Power supply: 8-19V DC in
  • Operating temperature: -10-60°C
  • Storage temperature: -20-70°C
  • Relative humidity: 0-95% RH relative humidity, non-condensing
  • Dimensions: 120 x 120mm
