Rugged Industrial Computer, On-board P7550 CPU, 6xCOM/6xUSB/GLAN/2GB DDR3/320GB HDD, 12-24V DC-in

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

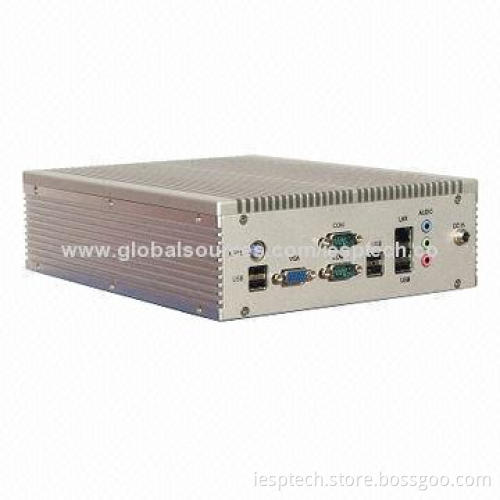

ICE-3145-GM45
Fanless industrial box PC

Mechanism:

Full aluminum embedded box with radiating fin in top side
Color: aluminum natural color

System information:

Processor: on-board intel core 2 duo P7550 CPU
Chipset: Intel GM45+ ICH9M chipset
BIOS: 8MB flash AMI BIOS
Watch dog: 1-65535 seconds/minute
Graphic: integrated GMAX4500M HD display core
Display interface: VGA
System memory: 2GB DDR3 system memory
System storage: 320GB 2.5" SATAII HDD

Front I/O:

6 x RS-232 (optional)
2 x USB2.0
1 x HDD LED
1 x reset button
1 x power switch with LED

Rear I/O:

Power: 1 x power in interface
Audio: 1 x line out
Audio: 1 x mic in
VGA: 1 x VGA
USB: 4 x USB2.0
LAN: 2 x RJ45

Power range: +12~24V DC-in

OS: supports Windows 7/Windows XP/Windows XP Embedded/Linux

Dimensions: 260 x 202 x 72mm (L x W x H)

Mounting: wall mounting/desktop

Environment:

Operating temperatures: -10-60°C
Operating humidity range: 5-85% RH at 50°C, non-condensing
Storage temperatures: -20-60°C
Storage humidity range: 5 -95% RH, non-condensing

Options:

8 x DI/O connector: optional
Wi-Fi: optional
Customized services are provided

ICE-3145-GM45

Fanless industrial box PC

Full aluminum embedded box with radiating fin in top side

Color: aluminum natural color

Processor: on-board intel core 2 duo P7550 CPU

Chipset: Intel GM45+ ICH9M chipset

BIOS: 8MB flash AMI BIOS

Watch dog: 1-65535 seconds/minute

Graphic: integrated GMAX4500M HD display core

Display interface: VGA

System memory: 2GB DDR3 system memory

System storage: 320GB 2.5" SATAII HDD

6 x RS-232 (optional)

2 x USB2.0

1 x HDD LED

1 x reset button

1 x power switch with LED

Power: 1 x power in interface

Audio: 1 x line out

Audio: 1 x mic in

VGA: 1 x VGA

USB: 4 x USB2.0

LAN: 2 x RJ45

Operating temperatures: -10-60°C

Operating humidity range: 5-85% RH at 50°C, non-condensing

Storage temperatures: -20-60°C

Storage humidity range: 5 -95% RH, non-condensing

8 x DI/O connector: optional

Wi-Fi: optional

Customized services are provided
