Product Description

ICE-3277-QM77

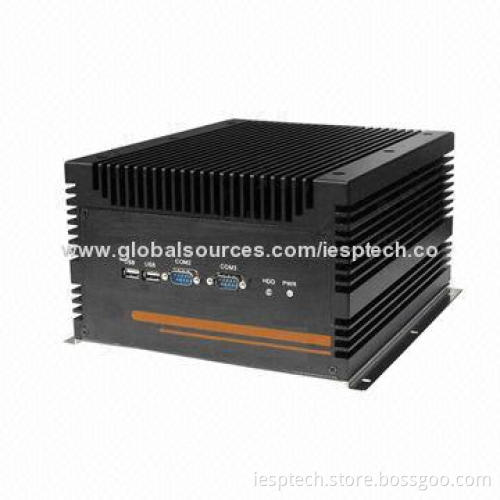

Fanless Industrial BOX PC

Specifications

Mechanism

Full aluminum embedded box w/radiating fin in top side
Color: matt black

System Information

Processor: socket G2 For Intel Core i7/i5/i3
Chipset: Intel® QM77 Chipset
BIOS: UEFI
Watch dog: 0~255 seconds/minute
Graphic: Integrated HD Display Core
Display Interface: DVI, HDMI
System memory: 4GB DDR3 System Memory
System storage: 320GB 2.5" SATAII HDD

Front I/O

2 x COM
2 x USB2.0
1 x HDD LED
1 x reset button
1 x power switch w/LED

Rear I/O

1 x Power in interface
1 x Line out, Line-i , MIC
1 x HDMI
1 x DVI
4x USB2.0, 2 X USB3.0
2 x RJ45 GLAN
1 x PS/2
1 x PCI Slot

Power Requirement: 4PIN, +12V DC IN

OS: support Windows 7/Windows XP/Windows XP Embedded/Linux

Dimensions: 260mm x 200mm x 120mm (L x W x H)

Mounting: wall Mounting/Desktop

Environment

Operating temperature: -10 ~ 60 deg. C
Operating humidity: 5 ~ 85% RH @ 50 deg. C, non-condensing
Storage temperature: -20 ~ 60 deg. C
Storage humidity: 5 ~ 95% RH, non-condensing

Options

8 x DI/O connector -- optional
6 x COM (2xRS-232/422/485,4xRS-232)---Optional
Wi-Fi ---optional
Provide Customized Services

Full aluminum embedded box w/radiating fin in top side

Color: matt black

Processor: socket G2 For Intel Core i7/i5/i3

Chipset: Intel® QM77 Chipset

BIOS: UEFI

Watch dog: 0~255 seconds/minute

Graphic: Integrated HD Display Core

Display Interface: DVI, HDMI

System memory: 4GB DDR3 System Memory

System storage: 320GB 2.5" SATAII HDD

2 x COM

2 x USB2.0

1 x HDD LED

1 x reset button

1 x power switch w/LED

1 x Power in interface

1 x Line out, Line-i , MIC

1 x HDMI

1 x DVI

4x USB2.0, 2 X USB3.0

2 x RJ45 GLAN

1 x PS/2

1 x PCI Slot

Operating temperature: -10 ~ 60 deg. C

Operating humidity: 5 ~ 85% RH @ 50 deg. C, non-condensing

Storage temperature: -20 ~ 60 deg. C

Storage humidity: 5 ~ 95% RH, non-condensing

8 x DI/O connector -- optional

6 x COM (2xRS-232/422/485,4xRS-232)---Optional

Wi-Fi ---optional

Provide Customized Services
