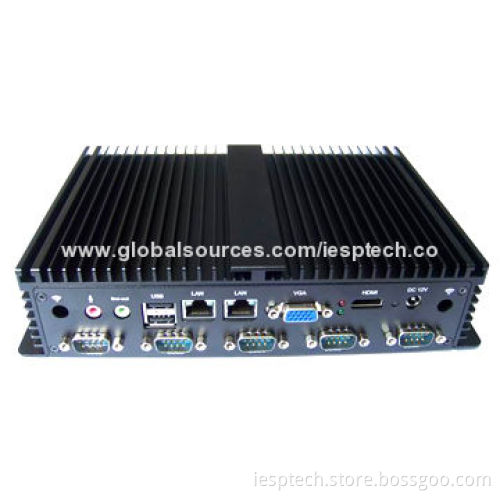

Fanless Industrial Computer, D2550 CPU/6 x COM/6 x USB/2 x GLAN/VGA/HDMI/12 DC In, 2GB DDR3/SSD/HDD

Fanless Industrial Computer, D2550 CPU/6 x COM/6 x USB/2 x GLAN/VGA/HDMI/12 DC In, 2GB DDR3/SSD/HDD

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

IEC-3123-D2550
Fanless industrial box PC

Mechanism:

Full aluminum Embedded box with radiation fin in top side
Color: Matt black

System information:

Processor: on-board Intel® Atom D2550 CPU
Chipset: Intel® NM10 express chipset
BIOS: AMI BIOS
Watch dog: 1-255 level
Graphic: Intel® GMA3150, shared memory up to 224MB
Display interface: VGA
System memory: 2GB DDR3 system memory
System storage: 320GB HDD (8GB 2.5" SSD optional)

Front I/O:

1 x COM
2 x USB2.0
1 x reset button
1 x power switch with LED

Rear I/O:

Power: 1 x power in interface
LEDs: 2x LED (power, HDD)
VGA: 1 x VGA
HDMI: 1 x HDMI
USB: 4 x USB2.0
5 x COM
LAN: 2 x RJ45 (10/100/1000Mbps GLAN)
Audio: 1 x audio out
Mic: 1 x mic

Power: +12V DC in

OS: supports Windows 7/Windows XP/Windows XP Embedded/Linux

Dimensions: 240 x 150 x 57mm (L x W x H)

Mounting: wall mounting/desktop

Environment:

Operating temperature: -10-60°C
Operating humidity: 5 -85% RH at 50°C, non-condensing
Storage temperature: -20-60°C
Storage humidity: 5-95% RH, non-condensing

Options:

Wi-Fi: optional
8 x DI/O connector: optional
Customized services are provided

IEC-3123-D2550

Fanless industrial box PC

Full aluminum Embedded box with radiation fin in top side

Color: Matt black

Processor: on-board Intel® Atom D2550 CPU

Chipset: Intel® NM10 express chipset

BIOS: AMI BIOS

Watch dog: 1-255 level

Graphic: Intel® GMA3150, shared memory up to 224MB

Display interface: VGA

System memory: 2GB DDR3 system memory

System storage: 320GB HDD (8GB 2.5" SSD optional)

1 x COM

2 x USB2.0

1 x reset button

1 x power switch with LED

Power: 1 x power in interface

LEDs: 2x LED (power, HDD)

VGA: 1 x VGA

HDMI: 1 x HDMI

USB: 4 x USB2.0

5 x COM

LAN: 2 x RJ45 (10/100/1000Mbps GLAN)

Audio: 1 x audio out

Mic: 1 x mic

Operating temperature: -10-60°C

Operating humidity: 5 -85% RH at 50°C, non-condensing

Storage temperature: -20-60°C

Storage humidity: 5-95% RH, non-condensing

Wi-Fi: optional

8 x DI/O connector: optional

Customized services are provided
