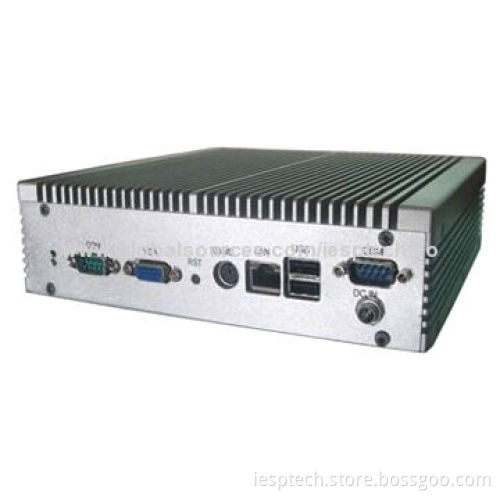

Fanless Embedded Industrial Computer, Onboard 1GB Memory/N450 CPU, 4xCOM/6xUSB/2xGLAN, 12V DC-in

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Model no.: IEC-3125-N450
Fanless industrial box PC

Mechanism:

Full aluminum Embedded box with radiation fin in top side
Color: aluminum natural color

System Information:

Processor: on-board Intel® Atom N455-1.6GHz/D525-1.8GHz
Chipset: Intel 82801GBM I/O controller Hub 8 (ICH8-M)
BIOS: 8MB flash AMI BIOS
Watch dog: 1-255 level
Graphic: Intel® GMA3150, shared memory up to 224MB
Display interface: VGA
System memory: on-board 1GB DDR3 system memory
System storage: 320GB 2.5" SATAII HDD, 1 x CF card socket

Front I/O:

4 x RS-232
2 x USB2.0
1 x HDD LED
1 x reset button
1 x power switch with LED

Rear I/O:

1 x VGA
2 x 10M/100M/1000M Glan
2 x USB2.0
1 x power in interface

Power: +12V DC in

OS: supports Windows 7/Windows XP/Windows XP Embedded/Linux

Dimensions: 296 x 169 x 66mm (L x W x H)

Mounting: wall mounting/desktop

Environment:

Operating temperature: -10-60°C
Operating humidity: 5-85% RH at 50°C, non-condensing
Storage temperature: -20-60°C
Storage humidity: 5-95% RH, non-condensing

Options:

8 x DI/O connector: optional
Wi-Fi: optional
1 x PCI104: optional
Customized services are provided

Model no.: IEC-3125-N450

Fanless industrial box PC

Full aluminum Embedded box with radiation fin in top side

Color: aluminum natural color

Processor: on-board Intel® Atom N455-1.6GHz/D525-1.8GHz

Chipset: Intel 82801GBM I/O controller Hub 8 (ICH8-M)

BIOS: 8MB flash AMI BIOS

Watch dog: 1-255 level

Graphic: Intel® GMA3150, shared memory up to 224MB

Display interface: VGA

System memory: on-board 1GB DDR3 system memory

System storage: 320GB 2.5" SATAII HDD, 1 x CF card socket

4 x RS-232

2 x USB2.0

1 x HDD LED

1 x reset button

1 x power switch with LED

1 x VGA

2 x 10M/100M/1000M Glan

2 x USB2.0

1 x power in interface

Operating temperature: -10-60°C

Operating humidity: 5-85% RH at 50°C, non-condensing

Storage temperature: -20-60°C

Storage humidity: 5-95% RH, non-condensing

8 x DI/O connector: optional

Wi-Fi: optional

1 x PCI104: optional

Customized services are provided
