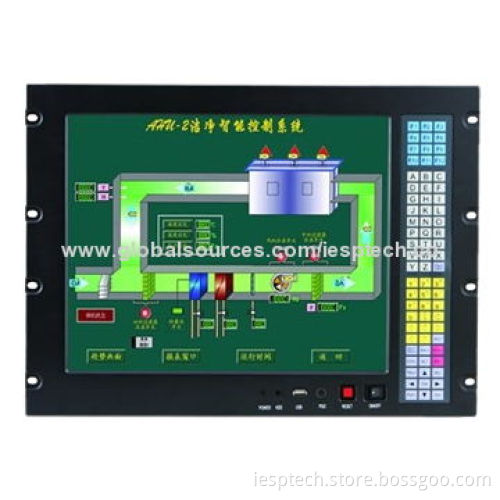

17-inch Touch Screen Terminal, Rack Mount, Membrane Keyboard, C1037 CPU/2GB/320GB/10COM/6USB

17-inch Touch Screen Terminal, Rack Mount, Membrane Keyboard, C1037 CPU/2GB/320GB/10COM/6USB

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Mechanical:

Front panel: aluminum panel, meet with NEMA4 IP65
Chassis: heavy steel
Dimensions: 482.6 x 354.8 x 133mm
Mounting: rack
Color: matte black
Weight: 9kg

System data:

CPU: onboard Intel Celeron 1037U dual core 1.8GHz
Chipset: NM70
BIOS: AMI 16M BIOS, ACPI supported
Watchdog: 1 to 65,535 seconds/minute
Graphic: integrated HD graphics display core
Memory: 2GB DDR3 system memory
Storage: 320GB 2.5" HDD (2.5" SSD optional )
Expansion: 1 x mini-PCIe slot, 1 x mini-SATA and 2 x PCI optional
System: Microsoft Windows XP and WIN7

LCD:

LCD size: 17" TFT LCD
Aspect ratio: 4:3
Resolution: 1280 x 1024p
Luminance: 350cd/m²
Contrast ratio: 1000:1
Backlight: LED
Colors: 16.7M

Touch screen:

Interface: USB
Light transmission: 80%
Type: 5-wire resistive touch screen

Cooling system:

Cooling mode: fan-less design

Keyboard and mouse:

Keyboard: 1 x full function membrane keyboard

Front I/O, LED and button:

USB: 2 x USB

LDES: 1 x HDD LED and 1 x power LED

Button: 1 x ATX power button and 1 x reset button

Rear I/O:

Ethernet: 2 x RJ-45 (RTL8111EL Gigabit Ethernet)

VGA: 2 x VGA

HDMI®: 1 x HDMI

Audio: 1 x audio (MIC and line-out)

USB: 4 x USB 2.0

Serial port: 4 x RS232

Power-in: 1 x DC-in Phoenix terminal and 1 x DC jack

Power:

System power requirement: +12V DC power input

Power adapter:

Input: 100 to 250V AC/47 to 63Hz
Output: 100W adapter (12V at 8A)

Environmental:

Operating temperature: 0 to 60°C (32 to 140°F)
Relative humidity: 0 to 90% relative humidity and non-condensing
Storage temperature: -20 to 70°C (-4 to 158°F)

Options:

Serial port: maximum up to 10 x COM
USB port: maximum up to 8 x USB
Wi-FI optional
Customized chassis colors and logos are accepted

Front panel: aluminum panel, meet with NEMA4 IP65

Chassis: heavy steel

Dimensions: 482.6 x 354.8 x 133mm

Mounting: rack

Color: matte black

Weight: 9kg

CPU: onboard Intel Celeron 1037U dual core 1.8GHz

Chipset: NM70

BIOS: AMI 16M BIOS, ACPI supported

Watchdog: 1 to 65,535 seconds/minute

Graphic: integrated HD graphics display core

Memory: 2GB DDR3 system memory

Storage: 320GB 2.5" HDD (2.5" SSD optional )

Expansion: 1 x mini-PCIe slot, 1 x mini-SATA and 2 x PCI optional

System: Microsoft Windows XP and WIN7

LCD size: 17" TFT LCD

Aspect ratio: 4:3

Resolution: 1280 x 1024p

Luminance: 350cd/m²

Contrast ratio: 1000:1

Backlight: LED

Colors: 16.7M

Interface: USB

Light transmission: 80%

Type: 5-wire resistive touch screen

Cooling mode: fan-less design

Keyboard: 1 x full function membrane keyboard

System power requirement: +12V DC power input

Input: 100 to 250V AC/47 to 63Hz

Output: 100W adapter (12V at 8A)

Operating temperature: 0 to 60°C (32 to 140°F)

Relative humidity: 0 to 90% relative humidity and non-condensing

Storage temperature: -20 to 70°C (-4 to 158°F)

Serial port: maximum up to 10 x COM

USB port: maximum up to 8 x USB

Wi-FI optional

Customized chassis colors and logos are accepted
