Product Description

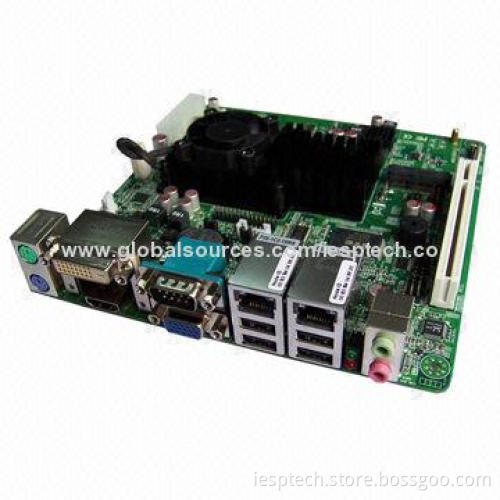

IESP-6425-B(2GLAN/2C/8U)

MINI-ITX Industrial CPU Board

System:

Processor: Intel Atom D2550 (1.86GHz)
Chipset: Intel NM10 Express chipset
Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 4GB
BIOS: AMI 16M BIOS, ACPI supported
Watch dog timer: supported

Display:

Graphics core: Integrated GMA3650 display core
Display memory: DVMT dynamic video memory
Display interface: HDMI, LVDS, VGA, DVI
Dual-display: supports synchronous and asynchronous

Ethernet:

Network chip: RTL 8111EL Gigabit LAN controller
Network interface: 2 x RJ45

Audio:

Codec: Realtek ALC662 HD audio
Audio interface: line-out, mic-in

Storage interface:

SATA: 2 x SATAII, 1 x mini SATA

I/O interface (embedded):

PCI: 1 x PCI slot
GPIO: 8-channel programmable digital I/O
LVDS: 1 x LVDS 18/24 bit, single channel
VGA: 1 x VGA expansion header
USB: 4 x USB2.0
COM: 2 x RS-232
FAN: 3 x power connector for fan
Mini SATA: 1 x mini SATA
Power interface: 1 x 20-pin ATX power connector

I/O interface (rear):

VGA: 1 x VGA
HDMI: 1 x HDMI
DVI: 1 x DVI
USB: 4 x USB2.0
Audio: 1 x Line-out, 1 x mic
PS/2: 1x PS/2 KB and MS
LAN: 2 x RJ45

Other features:

Power supply: 1 x 20-pin ATX power connector
Operating temperature: -20-60°C
Storage temperature: -40-80°C
Relative humidity: 0-95% RH relative humidity, non-condensing
Dimensions: 170 x 170mm

Processor: Intel Atom D2550 (1.86GHz)

Chipset: Intel NM10 Express chipset

Memory: 1 x 204pin DDR3 SO-DIMM, maximum up to 4GB

BIOS: AMI 16M BIOS, ACPI supported

Watch dog timer: supported

Graphics core: Integrated GMA3650 display core

Display memory: DVMT dynamic video memory

Display interface: HDMI, LVDS, VGA, DVI

Dual-display: supports synchronous and asynchronous

Network chip: RTL 8111EL Gigabit LAN controller

Network interface: 2 x RJ45

Codec: Realtek ALC662 HD audio

Audio interface: line-out, mic-in

SATA: 2 x SATAII, 1 x mini SATA

PCI: 1 x PCI slot

GPIO: 8-channel programmable digital I/O

LVDS: 1 x LVDS 18/24 bit, single channel

VGA: 1 x VGA expansion header

USB: 4 x USB2.0

COM: 2 x RS-232

FAN: 3 x power connector for fan

Mini SATA: 1 x mini SATA

Power interface: 1 x 20-pin ATX power connector

VGA: 1 x VGA

HDMI: 1 x HDMI

DVI: 1 x DVI

USB: 4 x USB2.0

Audio: 1 x Line-out, 1 x mic

PS/2: 1x PS/2 KB and MS

LAN: 2 x RJ45

Power supply: 1 x 20-pin ATX power connector

Operating temperature: -20-60°C

Storage temperature: -40-80°C

Relative humidity: 0-95% RH relative humidity, non-condensing

Dimensions: 170 x 170mm
