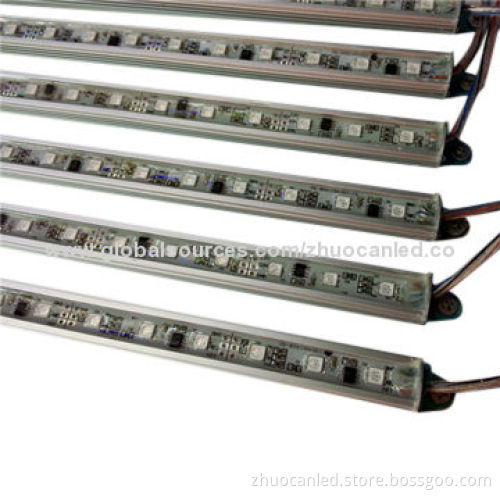

LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar
  • LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar
  • LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar
  • LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar
LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar
LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar
LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar

LED factory sale LPD6803/ws2801 30lLEDs/m DC12v digital LED light bar

Get Latest Price
Payment Type:
T/T, Western Union, PayPal or Cash
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union, PayPal or Cash
Product Description
Product Description
  • Quick details:
    • 30LEDs/M,10IC/M
    • 3 chips SMD5050 RGB adapt as light source
    • IP65 Waterproof
    • LPD6803/WS2801/WS2811 IC, 10pixels per meter (1IC control 3LEDs)
  • Specification:
    • Products name: aluminum LED bar
    • Model No.: ZC-10030IC-50
    • Power: 7.2W/meter
    • Work voltage: DC12V
    • IC model: UCS1903/TM1803/WS2811/lpd6803
    • LED quantity: 30pcs SMD5050RGB
    • Color: Full color(ICRGB)
  • Dimensions:
    1. 1000*15*10mm
    2. Waterproof grade
    3. IP65
    4. Work temperatures: -40-60°C
    5. Life-span: 50,000H
    6. Certificates: CE & RoHS
    7. Warranty: 2 years
  • Connection:
    1. Signal wire: DC+,GND, DAT and CLK
    2. DC+ and GND connect to power supplier: DAT and CLK connect to controller
    3. Relative controller: SPI controller supports LPD6803, when use DMX decoder, can connect to DMX system
    4. Supports online control
  • Color:
    1. Each pixel can be controlled individually
    2. Can show any color
    3. Can be used as LED display screen to show image and video
  • Notice:
    1. Make sure the connection is correct according to the diagram
    2. Pay attention to the parameters limit of voltage. Do NOT run over the peak value
  • 30LEDs/M,10IC/M
  • 3 chips SMD5050 RGB adapt as light source
  • IP65 Waterproof
  • LPD6803/WS2801/WS2811 IC, 10pixels per meter (1IC control 3LEDs)
  • Products name: aluminum LED bar
  • Model No.: ZC-10030IC-50
  • Power: 7.2W/meter
  • Work voltage: DC12V
  • IC model: UCS1903/TM1803/WS2811/lpd6803
  • LED quantity: 30pcs SMD5050RGB
  • Color: Full color(ICRGB)
