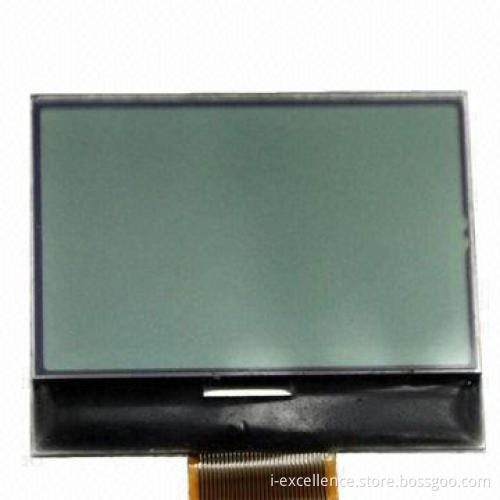

240 x 160 Dots Graphic White-Black Mode Positive and Transflective FSTN LCD Module
  • 240 x 160 Dots Graphic White-Black Mode Positive and Transflective FSTN LCD Module
240 x 160 Dots Graphic White-Black Mode Positive and Transflective FSTN LCD Module

240 x 160 Dots Graphic White-Black Mode Positive and Transflective FSTN LCD Module

Payment Type:
30% Deposit, 70% T/T before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit, 70% T/T before Shipment
Product Description
Product Description
  • Specifications:
    • LCD description: 240 x 160 dots graphic
    • Module dimensions (W x H x T): 74.6 x 54.1 x 8.3mm (maximum)
    • Viewing area (W x H): 61.6 x 42.5mm
    • Active area (W x H): 57.58 x 38.38mm
    • Dots pitch (W x H): 0.24 x 0.24mm
    • Dots size (W x H): 0.22 x 0.22mm
    • Duty/Bias: 1/160 duty, 1/13 bias
    • LCD display mode: FSTN/white-black mode/positive/Transflective
    • Viewing direction: 6 O’clock
    • Driver IC: NT7701H, NT7702H
