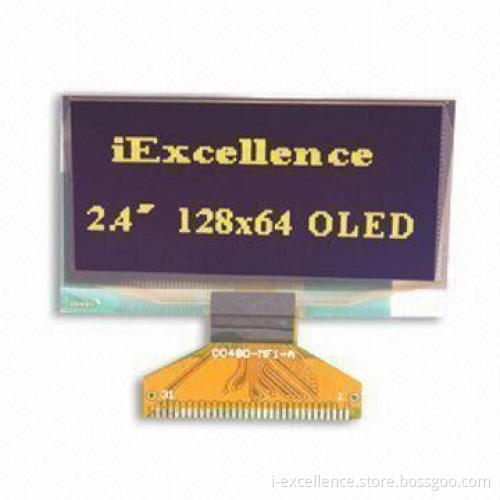

Yellow OLED Display Module with 128 x 64 Dots, Sized 2.4-inch, Suitable for Mechanical Instruments
  • Yellow OLED Display Module with 128 x 64 Dots, Sized 2.4-inch, Suitable for Mechanical Instruments
Yellow OLED Display Module with 128 x 64 Dots, Sized 2.4-inch, Suitable for Mechanical Instruments

Yellow OLED Display Module with 128 x 64 Dots, Sized 2.4-inch, Suitable for Mechanical Instruments

Payment Type:
30% Deposit and 70% T/T before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit and 70% T/T before Shipment
Product Description
Product Description
  • Display color: yellow
  • Dot matrix: 128 (RGB) x 64mm
  • Driver IC: SSD1305Z
  • Interface: 8-bit 8080
  • Wide range of operating temperature: -40 to 70°C
  • Dot matrix (W x H): 128 (RGB) x 64mm
  • Dot pitch (W x H): 0.43 x 0.43mm
  • Aperture rate: 86.53%
  • Active area (W x H): 55.01 x 27.49mm
  • Display module: full color 128 x 64 dot matrix
  • High-brightness, contrast ratio, self emission, slim or thin outline, wide viewing angle, wide temperature range and low-power consumption
  • Dot dimension (W x H): 0.4 x 0.4mm
  • Panel dimension (W x H): 60.5 x 32.8mm
  • Module dimension (W x H x D): 60.5 x 37 x 2.01mm
  • Diagonal A/A size: 2.4-inch
  • Module weight: TBD
