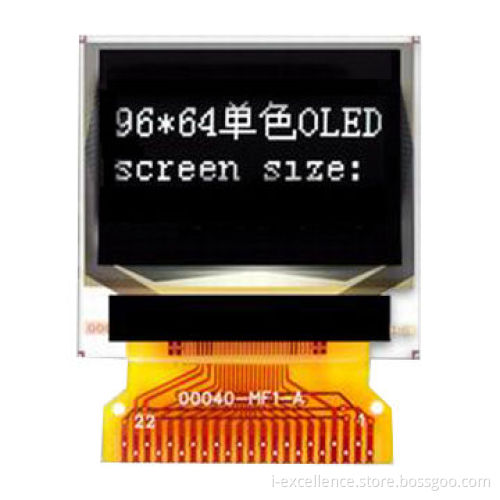

0.95-inch White OLED Display Module with 8-bit 8080 and 8-bit 6800, 4/3-wire SPI or IC InterfaceNew

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Overview:

The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption

Features:

Display color: white
Dot-matrix: 96 x 64 dots
Driver IC: SH1106
Interface: 8-bit 8080, 8-bit 6800, 4/3-wire SPI, IC

Mechanical data:

Dot-matrix (W x H): 96 x 64 dots
Dot size (W x H): 0.19 x 0.19mm
Dot pitch (W x H): 0.21 x 0.21mm
Aperture rate: 82%
Active area (W x H): 20.14 x 13.42mm
Panel size (W x H x T): 24.8 x 22.42 x 1.05mm
Module size (W x H x T): 24.8 x 32.22 x 1.28mm
Diagonal A/A size: 0.95-inch
Module weight: 1.35g ±10%

The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption

Display color: white

Dot-matrix: 96 x 64 dots

Driver IC: SH1106

Interface: 8-bit 8080, 8-bit 6800, 4/3-wire SPI, IC

Dot-matrix (W x H): 96 x 64 dots

Dot size (W x H): 0.19 x 0.19mm

Dot pitch (W x H): 0.21 x 0.21mm

Aperture rate: 82%

Active area (W x H): 20.14 x 13.42mm

Panel size (W x H x T): 24.8 x 22.42 x 1.05mm

Module size (W x H x T): 24.8 x 32.22 x 1.28mm

Diagonal A/A size: 0.95-inch
