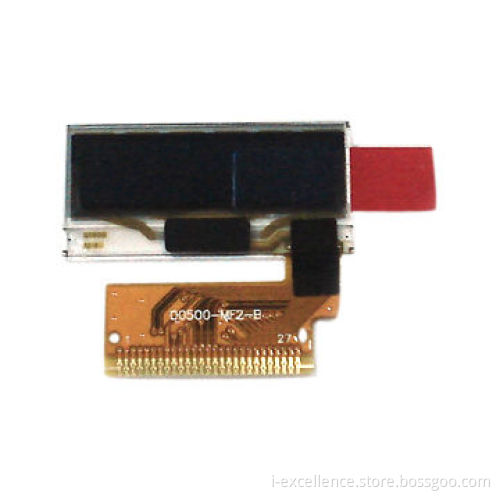

White OLED Display Module with 128 x 36-dot Matrix and 21.74 x 5.56mm Active Area
- Payment Type:
- 30% Deposit and 70% T/T before Shipment
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | 30% Deposit and 70% T/T before Shipment |
|---|
- Display color: white
- Driver IC: SP9010
- Interface: 8-bit 8,080, 8-bit 6,800spi
- Wide range of operating temperatures: -40 to 70°C
- Dot matrix (W x H): 128 x 36 dots
- Dot dimensions (W x H): 0.15 x 0.135mm
- Dot pitch: 0.17 x 0.155mm
- Aperture rate: 77%
- Active area (W x H): 21.74 x 5.56mm
- Panel dimensions (W x H x D): 25.86 x 12 x 1mm
- Module dimensions (W x H x D): 25.86 x 22.8 x 1.2mm
- Diagonal A/A size: 0.88 inches
- High-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption
-
