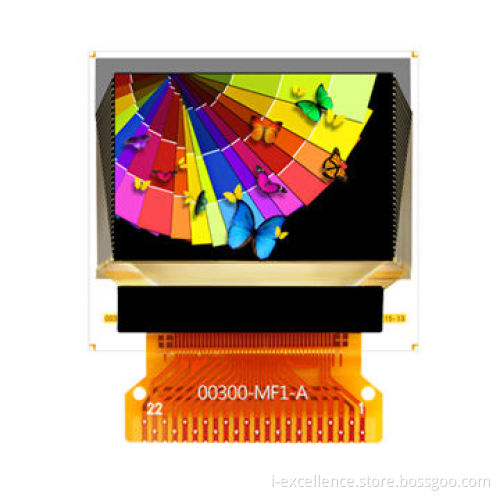

0.95-inch OLED Display Module, SSD1330 Driver IC and 20.135 x 13.42mm Active Area

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Features:

Display color: 65K full color
Dot matrix: 96 x 64 dots
Driver IC: SSD1330
Interface: 8 bits, 8080
Wide range of operating temperatures: -40 to 70°C

Mechanical data:

Dot matrix (W x H): 96 x 64mm
Dot size (W x H): 0.045 x 0.19mm
Dot pitch (W x H): 0.07 x 0.21mm
Aperture: 58%
Active area (W x H): 20.135 x 13.42mm
Panel size (W x H x D): 24.8 x 22.42 x 1.05mm
Module size (W x H x D): 24.8 x 33.92 x 1.28mm
Diagonal A/A size: 0.95 inch
Module weight: 1.38 ±10% grams

Overview:

Characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption

Display color: 65K full color

Dot matrix: 96 x 64 dots

Driver IC: SSD1330

Interface: 8 bits, 8080

Wide range of operating temperatures: -40 to 70°C

Dot matrix (W x H): 96 x 64mm

Dot size (W x H): 0.045 x 0.19mm

Dot pitch (W x H): 0.07 x 0.21mm

Aperture: 58%

Active area (W x H): 20.135 x 13.42mm

Panel size (W x H x D): 24.8 x 22.42 x 1.05mm

Module size (W x H x D): 24.8 x 33.92 x 1.28mm

Diagonal A/A size: 0.95 inch

Module weight: 1.38 ±10% grams

Characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption
