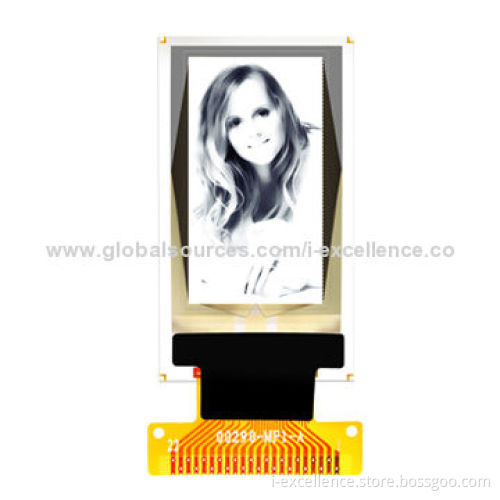

0.96-inch Grayscale OLED Display Module with 64 x 128 Dots and Monochrome White Display
- Payment Type:
- 30% Deposit and 70% T/T before Shipment
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | 30% Deposit and 70% T/T before Shipment |
|---|
- High-brightness
- Self-emission
- High-contrast ratio
- Slim/thin outline
- Wide viewing angle
- Low-power consumption
- Display color: white
- Driver IC: SSD1327Z
- Interface: 8-bit 8080, 8-bit 6800 and 4-line SPI/I2C
- Operating temperature: -40 to 70°C
- Dot matrix (W x H): 64 x 128 dots
- Dot size (W x H): 0.15 x 0.15mm
- Dot pitch (W x H): 0.17 x 0.17mm
- Aperture rate: 78%
- Active area (W x H): 10.86 x 21.74mm
- Panel size (W x H x T): 18.0 x 31.0 x 1.1mm
- Module size (W x H x T): 18 x 39.8 x 1.3mm
- Diagonal A/A size: 0.96-inch
- Module weight: 1.49 ±10%g
-
