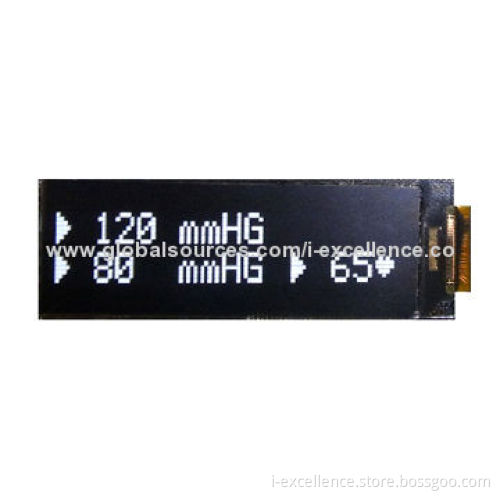

2.06-inch OLED Display Module with ZIF Connector and White Color

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Overview:

This is a monochrome OLED display module with 16 x 2 characters
The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low-power consumption

Features:

Display color: white
Format: 16 x 2
Driver IC: SSD1311M1Z
Interface: 4-bit 6800/4-bit 8080/8-bit 6800/8-bit 8080/I2C/SPI
Wide range of operating temperature: -40 to 70℃

Mechanical data:

Dot matrix (W x H): 80 x 16
Dot size (W x H): 0.49 x 0.59mm²
Dot pitch (W x H): 0.54 x 0.64mm²
Aperture rate: 84%
Active area (W x H): 51.175 x 10.78mm²
Panel size (W x H x T): 62.5 x 20.6 x 1.4mm³
Module size (W x H x T): 99.5 x 20.6 x 1.63mm³
Diagonal A/A size: 2.06-inch
Module weight: TBD gram

This is a monochrome OLED display module with 16 x 2 characters

The characteristics of this display module are high-brightness, self-emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low-power consumption

Display color: white

Format: 16 x 2

Driver IC: SSD1311M1Z

Interface: 4-bit 6800/4-bit 8080/8-bit 6800/8-bit 8080/I2C/SPI

Wide range of operating temperature: -40 to 70℃

Dot matrix (W x H): 80 x 16

Dot size (W x H): 0.49 x 0.59mm²

Dot pitch (W x H): 0.54 x 0.64mm²

Aperture rate: 84%

Active area (W x H): 51.175 x 10.78mm²

Panel size (W x H x T): 62.5 x 20.6 x 1.4mm³

Module size (W x H x T): 99.5 x 20.6 x 1.63mm³
