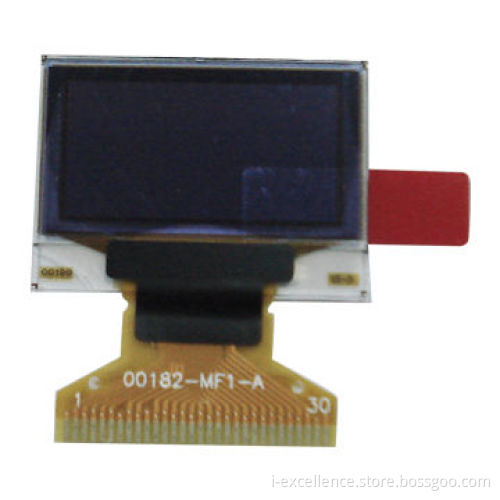

1.3-inch OLED Display Module, 128 x 64 Dot Matrix, Blue Color and Wide Viewing Angle

Get Latest Price

Payment Type:: 30% Deposit and 70% T/T before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	30% Deposit and 70% T/T before Shipment

Product Description

Overview:

OLED full color 128 x 64 dots matrix display module
Characteristics: high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption

Features:

Display color: blue
Dot matrix: 128 x 64
Driver IC: SH1106G
Interface: 8-bit 8080, 8-bit 6800, I²C, 3- and 4-wire SPI
Wide range of operating temperatures: -40 to 70°C

Mechanical data:

Dot matrix: 128 x 64mm
Dot size: 0.21 x 0.21mm
Dot pitch: 0.23 x 0.23mm
Aperture: 83 %
Active area: 29.42 x 14.7mm
Panel size: 34.5 x 23 x 1.2mm
Module size: 34.5 x 35 x 1.43mm
Diagonal A/A size: 1.3 inches
Module weight: 2.09 ±10% grams

OLED full color 128 x 64 dots matrix display module

Characteristics: high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption

Display color: blue

Dot matrix: 128 x 64

Driver IC: SH1106G

Interface: 8-bit 8080, 8-bit 6800, I²C, 3- and 4-wire SPI

Wide range of operating temperatures: -40 to 70°C

Dot matrix: 128 x 64mm

Dot size: 0.21 x 0.21mm

Dot pitch: 0.23 x 0.23mm

Aperture: 83 %

Active area: 29.42 x 14.7mm

Panel size: 34.5 x 23 x 1.2mm

Module size: 34.5 x 35 x 1.43mm
