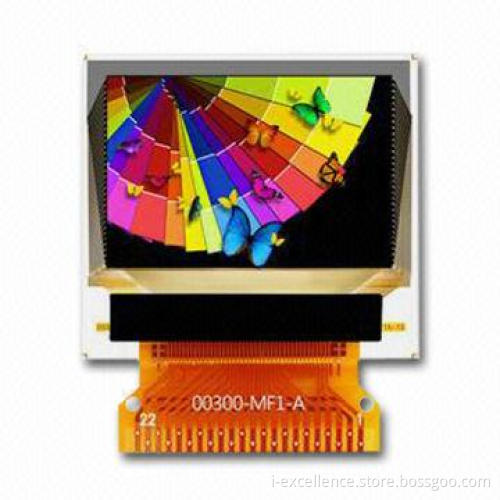

0.95-inch OLED Display Module with 96 x 64-dot Matrix and 65K Full Color Display
  • 0.95-inch OLED Display Module with 96 x 64-dot Matrix and 65K Full Color Display
0.95-inch OLED Display Module with 96 x 64-dot Matrix and 65K Full Color Display

0.95-inch OLED Display Module with 96 x 64-dot Matrix and 65K Full Color Display

Payment Type:
30% Deposit and 70% T/T before Shipment
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: 30% Deposit and 70% T/T before Shipment
Product Description
Product Description
  • Specifications:
    • Display color: 65K full
    • Driver IC: SSD1331Z
    • Interface: 8-bit 6,800, 8-bit 8080, SPI
    • Operating temperature range: -30 to 70°C
    • Storage temperature: -30 to 80°C
    • Dot matrix: 96 (RGB) x 64 dots
    • Dot dimensions (W x H): 0.045 x 0.19mm
    • Dot pitch (W x H): 0.07 x 0.21mm
    • Aperture rate: 58%
    • Active area (W x H): 20.135 x 13.42mm
    • Panel dimensions (W x H): 24.8 x 22.42mm
    • Module size: according to annexed mechanical drawing
    • Diagonal A/A size: 0.95-inch
    • Module weight: TBD
