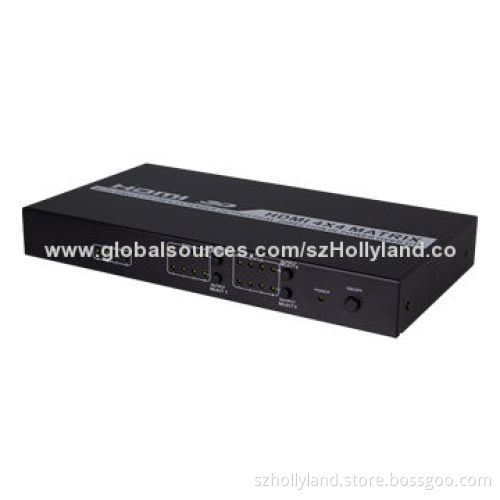

HDMI 4x4 Video Matrix with Internal Extenders, Power Over UTP, EDID, RS232, 1,080P

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or PayPal

Product Description

HDMI 1.3 spec and HDMI 1.4 3D supported

HDMI HDCP1.3 compatible

True 4 by 4 HDMI matrix, allow 4 output could select the same or different HDMI source simultaneously

The four output all include one HDMI-A connecter and one RJ-45 connecter

They can output simultaneously

The Cat5e/6 output supports power over UTP, whose Cat5e/6 extender receiver can work without external DC adapter

Supported resolution 1,080P/1,080i/720P/576P/480P/576i/480i

Support audio format: PCM, Dolby®-AC3, DTS®7.1, DSD

HPD and CEC supported

Both emitter and receiver 4x4 IR matrix embedded with local IR control

Auto remembering last power-off matrix status and auto-skip for un-connected input when power-on initialization

EDID dynamic mixing management with maximum compatibility

HDMI Cat5e/6 extender port supports EDID call back

Multi-mode control by LAN, RS232, local IR remote, Cat5e/6 extender side IR receiver or panel button

ESD protection level HBM ±8 kV (contact discharge) for any input and output port

Industrial metal case, easy to install
