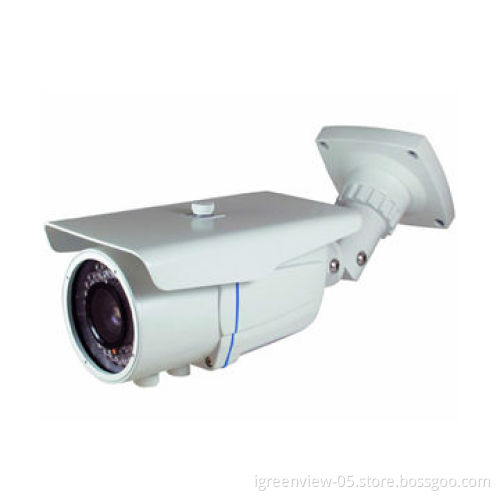

HD SDI Camera with 2.8-12mm Varifocal Lens, 1/2.8" Panasonic 2.2 Megapixel CMOS

Get Latest Price

Payment Type:: T/T, L/C, Western Union or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or MoneyGram

Product Description

Key specifications:

HD SDI camera
Image sensor: 1/2.8" Panasonic 2.2 megapixel CMOS
Lens: 2.2 megapixels ICR+DC lens, 2.8-12mm, external lens adjusting
Infrared lamp diameter 5 IR LED 42pcs
IR distance: 40m
Resolutions: 1,920*1,080 @ 30fps (1080P)
Water resistant rate: IP66
Scanning system: progressive
WDR: HD SDI WDR
S/N ratio: more than 50dB (AGC off)
AEC/DWDR: CVBS DWDR
Brightness: 0-20
Sensor up: 1-8x
AGC: 0-20 steps
Shutter speed: auto/manual (1/50-1/60,000sec)
Digital slow shutter: off/on (X4)
White balance: auto/auto text/pushing/manual
Defog: off/on
Shading: off/on
HLC: off/HLC
BLC: off/BLC
Day and night: auto*color/B and W
Focus ADJ: off/on
Monitor: 0/1/2/3
DNR: off/low/middle/high
Mirror: off/on
H-V-REV: off/on
Sharpness: 0-10 steps
Digital zoom: x1-10
Motion: off/on
Privacy mask: 32 masks
Video output: HD-SDI
Analog: NTSC/PAL CVBS
SMA connector, CVBS: BNC connector
HD SDI distance: 5C 2V (75Ω) 100-140m, SDI (75Ω) 200m
SDI & video dual output

HD SDI camera

Image sensor: 1/2.8" Panasonic 2.2 megapixel CMOS

Lens: 2.2 megapixels ICR+DC lens, 2.8-12mm, external lens adjusting

Infrared lamp diameter 5 IR LED 42pcs

IR distance: 40m

Resolutions: 1,920*1,080 @ 30fps (1080P)

Water resistant rate: IP66

Scanning system: progressive

WDR: HD SDI WDR

S/N ratio: more than 50dB (AGC off)

AEC/DWDR: CVBS DWDR

Brightness: 0-20

Sensor up: 1-8x

AGC: 0-20 steps

Shutter speed: auto/manual (1/50-1/60,000sec)

Digital slow shutter: off/on (X4)

White balance: auto/auto text/pushing/manual

Defog: off/on

Shading: off/on

HLC: off/HLC

BLC: off/BLC

Day and night: auto*color/B and W

Focus ADJ: off/on

Monitor: 0/1/2/3

DNR: off/low/middle/high

Mirror: off/on

H-V-REV: off/on

Sharpness: 0-10 steps

Digital zoom: x1-10

Motion: off/on

Privacy mask: 32 masks

Video output: HD-SDI

Analog: NTSC/PAL CVBS

SMA connector, CVBS: BNC connector

HD SDI distance: 5C 2V (75Ω) 100-140m, SDI (75Ω) 200m

SDI & video dual output
