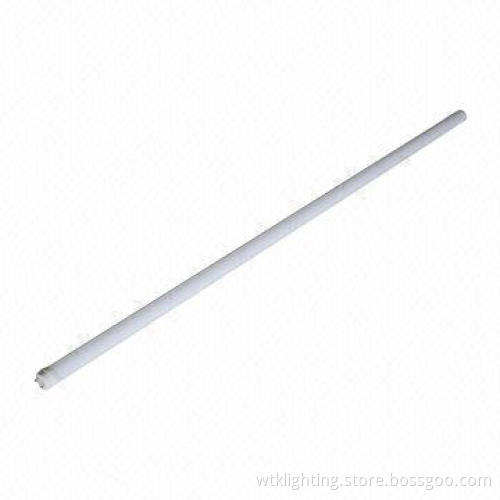

T8 LED Tube with 18W Power Consumption, 3528 Beads and Aluminum Cover

T8 LED Tube with 18W Power Consumption, 3528 Beads and Aluminum Cover

Get Latest Price

Payment Type:: TT, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union

Product Description

Product descriptions:

Luminous efficiency up to 110 to 120lm/W
Beam light: 120°
Light source: SMD3528
Warranty: 3 years
Available in length of 600/900/1,200/1,500mm

Advantages:

Easy to replace and repair once the external driver stops working
Beam angle: >150°
CE/UL-listed external driver as options
Low voltage of average 40V on LED tube itself, much safer once there is electricity leakage
Available for both constant current/voltage on PCB design

Features:

Instant on/off
No UV/flickering
Up to 50% energy saving and power consumption
Unique appearance with outstanding performance
Exclusive mold involving heat sink/driver/circuit design
Low voltage, safe and reliable

Applications:

Suitable for all places where long time lighting is required, such as underground parking garages, tunnels, underground passages, warehouses, supermarkets, offices and so on
Ideal lighting for anywhere that you want to avoid UV, such as beauty parlor, cosmetic show case and wardrobe

Parameters:

Dimension: (D) 26 x 1,200mm
LED quantity: 110pcs x SMD3014
Power consumption: 18W
Average luminous flux:
- 2,150lm, 6,000K/clear cover
- 2,016lm, 6,000k/milky cover
Input voltage range: 180-265V AC
Frequency range of PSU: 50-60Hz
Total harmonic distortion: ≤20%
Power factor: >0.9
Power efficiency: >88%
Luminous efficiency: >100lm/w
Working temperatures: -20 to 55°C
Storage temperatures: -25 to 65°C, optimum at 25°C
IP grade: 50

Photometric specification:

LED luminous efficiency range: 110 to 120lm/W
Color rendering index:
- WW: >70
- NW, PW, W: >70
Color temperature: warm white (2,800 to 3,500), natural white (4,000 to 4,500), pure white (5,000 to 5,500) and cool white (5,800 to 6,300K)
Mount/base type: G13
Material of the lamp shell: PC

Certification: CE, RoHS and TUV

Packing sizes (L x W x H): 1,230 x 33 x 33mm/1pc, 1,275 x 205 x 175mm/30pcs each carton
