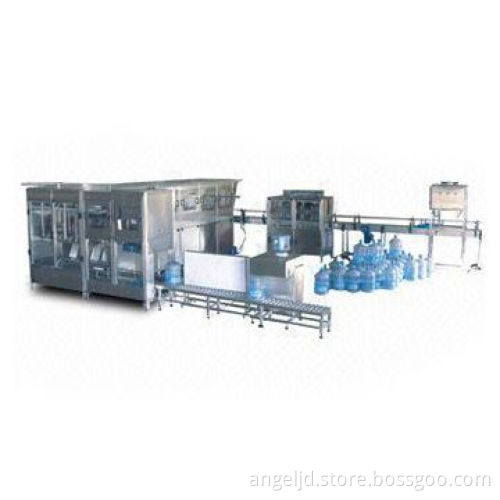

Bottling Machine with Water-shortage and Under-pressure Protections

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Functions and features:

Automatic break protection for power leakage and short circuit
Under-pressure protection: when incoming air pressure is f0.5MPa, the equipment will be automatically stopped
Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped

Main technical standards:

Output: 450 to 600BPH
Voltage: 220V/380V AC ±5% 50Hz/60Hz
Rated power: 19.1kW to 24.8kW
Washing heads: 3 x 7 and 4 x 9 inches
Filling heads: 3 x 1 and 4 x 1 inches
Capping heads: 1 x 3 and 1 x 1 inches
Bottle size: $270 x 490 x 56mm
Cap size: $58 x 40mm (tail: L x W= 18 x 7.5mm)
Air pressure: 0.5 to 0.6MPa
Net weight: 950kg to 1450kg
Overall dimension:
- 4,390 x 1,100 x 1,760mm
- 4,710 x 1,520 x 1,760mm
- 3,000 x 800 x 1,760mm
- 3,220 x 800 x 1,760mm

Remarks: we can add other functions as customer's requirements like: hot tank heating washing, bottle external washing, cap washing, capacity note, and man-machine control

Automatic break protection for power leakage and short circuit

Under-pressure protection: when incoming air pressure is f0.5MPa, the equipment will be automatically stopped

Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped

Output: 450 to 600BPH

Voltage: 220V/380V AC ±5% 50Hz/60Hz

Rated power: 19.1kW to 24.8kW

Washing heads: 3 x 7 and 4 x 9 inches

Filling heads: 3 x 1 and 4 x 1 inches

Capping heads: 1 x 3 and 1 x 1 inches

Bottle size: $270 x 490 x 56mm

Cap size: $58 x 40mm (tail: L x W= 18 x 7.5mm)

Air pressure: 0.5 to 0.6MPa
