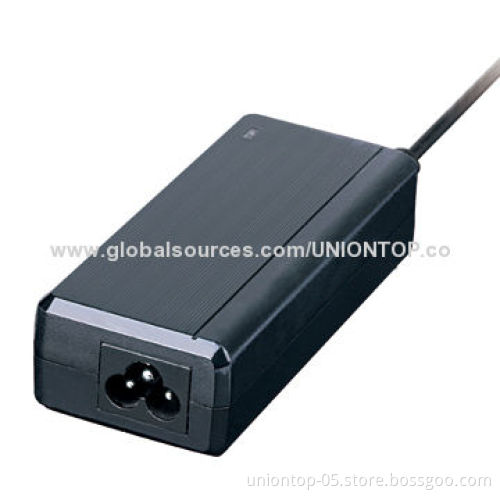

UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
  • UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A
UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A

UL-/CE-/GS-/KC-/CB-/PSE-/C-tick/SAA-approved 65W Power Adapter, 18V/3.3A

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    1. Compact size and easy to carry
    2. Single output power of 65W
    3. Modified and customized designs are welcome
    4. Desktop type
    5. Colors: white and black
    6. For laptop and computer
  • Parameters:
    • 65W AC/DC power adapter
    • Input:
      • Voltages: 100-240V AC
      • Frequency: 50-60Hz
      • Current: 1.4A maximum
    • Output:
      • Load regulation: 5% typical
      • Ripple: 1-2% P-P maximum for output voltage and full load
      • Transit response: 0.5ms for 50% load change typical
      • Holdup time: 10ms full-load
      • Protection: short-circuit/over-voltage/-current protection
      • DC cord: 18/20AWG
    • Electronic:
      • Topology: switching fly back
      • Hi-pot withstanding voltage: 3,000V AC primary-secondary
      • Leakage current: 0.25mA at 2-pin
  • Efficiency: meet CEC and Energy Star
  • EMI conduction and radiation: compliant with EN55022 Class B
  • Current: compliant with EN61000-3-2,3
  • EMS immunity: compliant with EN61000-4-2, 3.4, 5, 6, 8, 11
  • Meet safety agency requirements and compliant with EMI/EMC
  • Punctual delivery and competitive price
  • 1-year warranty
  • CB/UL/cUL/PSE/BSMI/LPS/GS/CE certification passed
  • 65W AC/DC power adapter
  • Input:
    • Voltages: 100-240V AC
    • Frequency: 50-60Hz
    • Current: 1.4A maximum
  • Output:
    • Load regulation: 5% typical
    • Ripple: 1-2% P-P maximum for output voltage and full load
    • Transit response: 0.5ms for 50% load change typical
    • Holdup time: 10ms full-load
    • Protection: short-circuit/over-voltage/-current protection
    • DC cord: 18/20AWG
  • Electronic:
    • Topology: switching fly back
    • Hi-pot withstanding voltage: 3,000V AC primary-secondary
    • Leakage current: 0.25mA at 2-pin
  • Voltages: 100-240V AC
  • Frequency: 50-60Hz
  • Current: 1.4A maximum
  • Load regulation: 5% typical
  • Ripple: 1-2% P-P maximum for output voltage and full load
  • Transit response: 0.5ms for 50% load change typical
  • Holdup time: 10ms full-load
  • Protection: short-circuit/over-voltage/-current protection
  • DC cord: 18/20AWG
  • Topology: switching fly back
  • Hi-pot withstanding voltage: 3,000V AC primary-secondary
  • Leakage current: 0.25mA at 2-pin
