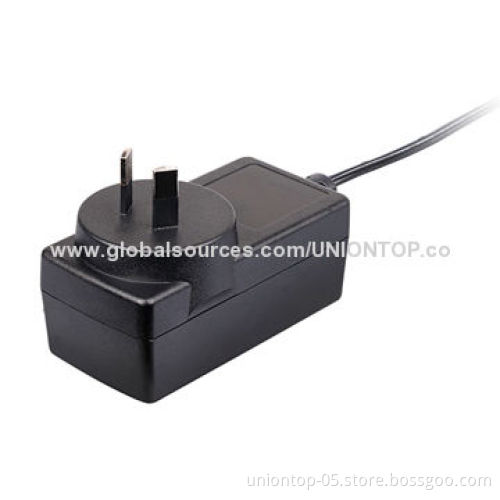

9v, set top box power adapter with UL, CB, KC, PSE

9v, set top box power adapter with UL, CB, KC, PSE

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Output voltage: 8V, 0.75A
Approvals: UL, CE, FCC, LVD, GS and C-tick
1 year warranty
With US, UK, AU, SF, CN and Euro plugs
High speed
Hot selling, widely used, popular, apply to all over the world

Applications:

Power supply, power adapter, adapter, AC/DC adapter are widely used for phone, POS machine, household appliances, electronic devices, medical equipment and massage chair

Parameters:

Input:
- Voltage: 100-240V AC
- Frequency: 50-60Hz
- Current: 0.48A (maximum)
Output:
- Load regulation: 5% typical
- Ripple: 1-2% P-P maximum for output voltage and full load
- Transit response: 0.5ms for 50% load changing typical
- Hold-up time: 10ms full load
- Protection: short-circuit/over-voltage/-current protection
- DC cord: 18/20/22AWG

Electronic:

Topology: switching flyback
Hi-pot withstand: 3000V AC primary-secondary
Leakage current: 0.25mA at 2-pin
Efficiency: meets CEC and Energy Star
EMI conduction and radiation: compliance to EN 55022 Class B
Harmonic current: compliance to EN 61000-3-2 and 3
EMS immunity: compliance to EN 61000-4-2, 3.4, 5, 6, 8 and 11
MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F

Output voltage: 8V, 0.75A

Approvals: UL, CE, FCC, LVD, GS and C-tick

1 year warranty

With US, UK, AU, SF, CN and Euro plugs

High speed

Hot selling, widely used, popular, apply to all over the world

Power supply, power adapter, adapter, AC/DC adapter are widely used for phone, POS machine, household appliances, electronic devices, medical equipment and massage chair
