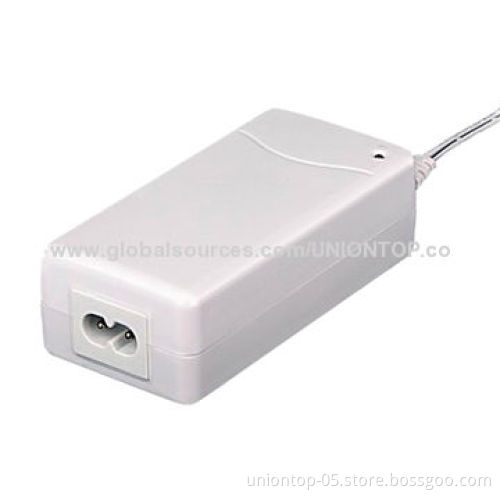

30W desktop AC DC switching adapter 24V 1.25A with CE, FCC, UL, GS, C-tick, approval

30W desktop AC DC switching adapter 24V 1.25A with CE, FCC, UL, GS, C-tick, approval

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

AC/DC power adapter:

Output voltage:

19V/2.1A
18V/2.5A
12V/3A
24V 1.25A

Approvals: CE/FCC/CB/GS-TUV/CCC/cUL/UL/C-Tick

Warranty: 1 year

Output current: 45W (maximum)

High speed

Hot sale, widely used, popular, applied all over the world

Warranty: 1 year

Dimensions: 100.7*48.9*32.9mm

Applications:

Widely used for phone, POS machine, household appliances, electronic devices, medical equipment and massage chair

Advantages:

High efficiency
Low ripple and noise, output over-voltage protection
Output short-circuit protection and over-power protection
100% burn-in under high ambient temperature (60°C)
MTBF: 60,000 hours, 100% hi-pot treated
Line input fuse protection, ESD and surge protection
Ambient requirements:
Operating temperatures: 0 to 40°C
Storage temperatures: -20 to +80°C
Operating humidity range: 10-90% RH
Storage humidity range: 10-90% RH4
2W power supply

Parameters:

Input:
- Voltage: 100—240VAC
- Frequency: 50—60Hz
- Current: 1.1aA Max

Output:

Load regulation: 5% Typical
Ripple: 1-2%P-P Max .for output voltage& full load
Transit response: 0.5mS for 50%load change typical
Holdup time: 10ms full load

Protection: short circuit protection/ over voltage protection/over current protection

DC Cord: 18AWG/20AWG/22AWG

Electronic

Topology: switching fly back

Hi-Pot withstand: 3000VAC primary-secondary

Leakage current: 0.25mA@2Pin

Efficiency: meet CEC& energy star

EMI conduction & radiation: compliance to EN55022 class B

Harmonic current: Compliance to EN61000-3-2,3

EMS immunity: Compliance to EN61000-4-2,3.4,5,6,8,11

MTBF: 50,000 Calculated Hours at 25 , by ML-HDBK-217F

19V/2.1A

18V/2.5A

12V/3A

24V 1.25A

Widely used for phone, POS machine, household appliances, electronic devices, medical equipment and massage chair

High efficiency

Low ripple and noise, output over-voltage protection

Output short-circuit protection and over-power protection

100% burn-in under high ambient temperature (60°C)

MTBF: 60,000 hours, 100% hi-pot treated

Line input fuse protection, ESD and surge protection

Ambient requirements:

Operating temperatures: 0 to 40°C

Storage temperatures: -20 to +80°C

Operating humidity range: 10-90% RH

Storage humidity range: 10-90% RH4

2W power supply

Input:

Voltage: 100—240VAC
Frequency: 50—60Hz
Current: 1.1aA Max

Voltage: 100—240VAC

Frequency: 50—60Hz

Current: 1.1aA Max

Load regulation: 5% Typical

Ripple: 1-2%P-P Max .for output voltage& full load

Transit response: 0.5mS for 50%load change typical

Holdup time: 10ms full load
