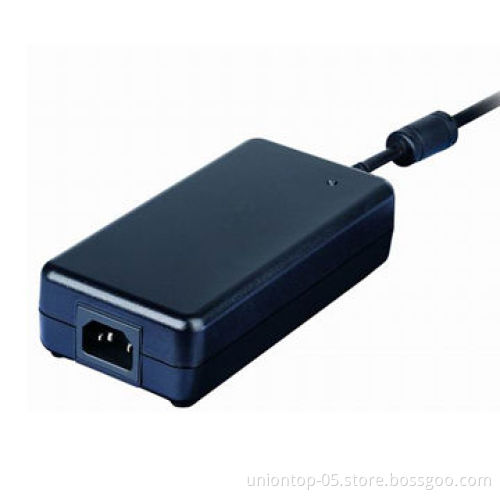

120W Series Switching Power Supply with 24V/5A LCD Power Supply
  • 120W Series Switching Power Supply with 24V/5A LCD Power Supply
  • 120W Series Switching Power Supply with 24V/5A LCD Power Supply
  • 120W Series Switching Power Supply with 24V/5A LCD Power Supply
120W Series Switching Power Supply with 24V/5A LCD Power Supply
120W Series Switching Power Supply with 24V/5A LCD Power Supply
120W Series Switching Power Supply with 24V/5A LCD Power Supply

120W Series Switching Power Supply with 24V/5A LCD Power Supply

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Input: AC 100-220V, 50/60Hz
    • Output: 24V/5A, 19V/6A
    • Power: 120W
    • High quality with RoHS, 12 months warranty
    • Safeguard features against incorrect voltage, shot-circuit, internal overheating
    • External dimensions: 5.5mm
    • Internal dimensions: 2.5mm
  • Parameters:
    • Input:
      • Voltage: 100-240V AC
      • Frequency: 50-60Hz
    • Output:
    • Load regulation: 5% typical
    • Ripple: 1-2% P-P maximum for output voltage and full load
    • Transit response: 0.5mS for 50% load change typical
    • Hold-up time: 10ms full load
    • Protection: short-circuit protection/over-voltage protection/over-current
    • DC cord: 18AWG/16AWG/14AWG
  • Electronical:
    • Topology: switching flyback
    • Hi-pot withstand: 3,000V AC primary-secondary
    • Leakage current: 0.25mA at 2 pins
    • Efficiency: meet CEC and Energy Star
    • EMI conduction and radiation: compliant to EN55022 Class B
    • Harmonic current: compliant to EN61000-3-2,3
    • EMS immunity: compliant to EN61000-4-2, 3.4, 5, 6, 8, 11
    • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
  • After-services:
    • We guarantee each product will be checked
    • If there are bad  products, we will promptly pay compensation to customers without any charge
    • We also sell lots of similar electronic products which are good in quality, low in price and promptly delivery
  • Input: AC 100-220V, 50/60Hz
  • Output: 24V/5A, 19V/6A
  • Power: 120W
  • High quality with RoHS, 12 months warranty
  • Safeguard features against incorrect voltage, shot-circuit, internal overheating
  • External dimensions: 5.5mm
  • Internal dimensions: 2.5mm
  • Input:
    • Voltage: 100-240V AC
    • Frequency: 50-60Hz
  • Output:
  • Load regulation: 5% typical
  • Ripple: 1-2% P-P maximum for output voltage and full load
  • Transit response: 0.5mS for 50% load change typical
  • Hold-up time: 10ms full load
  • Protection: short-circuit protection/over-voltage protection/over-current
  • DC cord: 18AWG/16AWG/14AWG
  • Voltage: 100-240V AC
  • Frequency: 50-60Hz
  • Topology: switching flyback
  • Hi-pot withstand: 3,000V AC primary-secondary
  • Leakage current: 0.25mA at 2 pins
  • Efficiency: meet CEC and Energy Star
  • EMI conduction and radiation: compliant to EN55022 Class B
  • Harmonic current: compliant to EN61000-3-2,3
  • EMS immunity: compliant to EN61000-4-2, 3.4, 5, 6, 8, 11
  • MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F
  • We guarantee each product will be checked
  • If there are bad  products, we will promptly pay compensation to customers without any charge
  • We also sell lots of similar electronic products which are good in quality, low in price and promptly delivery
