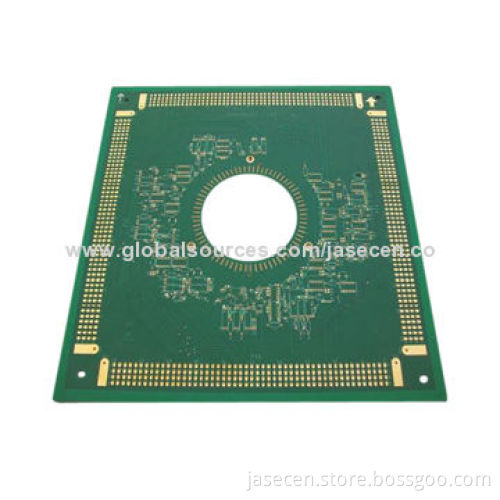

6-layer gold-plated PCB with impedance control

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Multilayer rigid PCB's up to 18 layers

Flexible and flex-rigid circuits up to 18 layers

Controlled Impedance

HDI (high-density interconnection)

Blind and buried via holes

RoHS and UL compliant on request

FR4 standard epoxy and high temp versions

Polyimide, polyester and PET

PTFE (polytetrafluorethylene) and Duroid (glass-reinforced PTFE composite)

Aluminum-based materials

Ceramic and exotic substrates with higher maximum operating temperatures, lower coefficients of expansion and/or higher Tg levels

CNC routing

Scoring (V-grooving)

Gold on nickel contact fingers

LPSM (liquid photo imageable solder mask) range of colors available

Peelable solder mask

Screened conductive inks (carbon)

Bare board electrical testing

Immersion silver

Immersion gold

Lead-free or HASL (hot air solder leveling)

OSP (organic surface preservative)

Gold finger

Gold plating

Immersion tin
