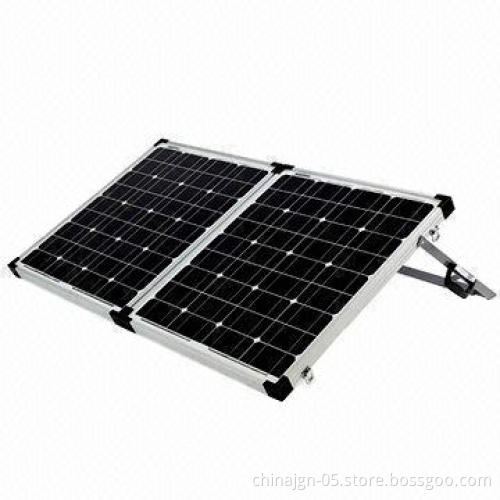

New JGN 100W 2 Folding Solar Panel

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum power: 150Wmp

Maximum power voltage: 36Vmp

Maximum power current: 4.29Imp

Open circuit voltage: 43Voc

Short circuit current: 4.68Isc

Weight per piece: 16kg

Cells types and size: monocrystalline silicon 125x125mm

Size of module: 1580x800x50mm

Cells per module: 72 pieces

Nominal operating cell temperature: 47±2NOCT

Maximum system voltage: 1000V DC

Cell efficiency: >16%

Max.series fuse rating: 15A

Temperature coefficients of Isc: 0.065±0.015%

Temperature coefficients of Voc (%): -2.23±0.1mv

Temperature coefficients of Pm: -0.5±0.05%

Temperature coefficients of Im: +0.1%

Temperature coefficients of Vm: -0.38%

Temperature range: -40 to +85°C

Tolerance wattage: ±5%

Surface maximum load capacity: 30m/s(200kg/m²)

Allowable hail load: steel ball fall down from 1m height

Front glass: 3.2mm tempered

Junction box type: black IP65

Length of cable: 90mm

Output tolerance: ±3%

Frame (material and corners): anodized aluminum alloy

Standard test conditions: AM1.5 1000W/m² 25

Features:

High-efficiency solar cell ensures high performance of solar module and creates more power in peak hours
Anti-reflecting coating and high-transmission rate glass increases the power output and mechanical strength of solar module
Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping and stand against high wind
Water-resistant junction box 25 years linear power warranty: 10 years at 90% of minimal rated power output and 25 years at 80% of minimal rated power output
Rigorous quality control meeting highest international standards
Products meet international standards and through professional testing and certification authority SGS and CE

Applications:

Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo voltaic power plants and other fields

High-efficiency solar cell ensures high performance of solar module and creates more power in peak hours

Anti-reflecting coating and high-transmission rate glass increases the power output and mechanical strength of solar module

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping and stand against high wind

Water-resistant junction box 25 years linear power warranty: 10 years at 90% of minimal rated power output and 25 years at 80% of minimal rated power output

Rigorous quality control meeting highest international standards

Products meet international standards and through professional testing and certification authority SGS and CE

Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photo voltaic power plants and other fields
