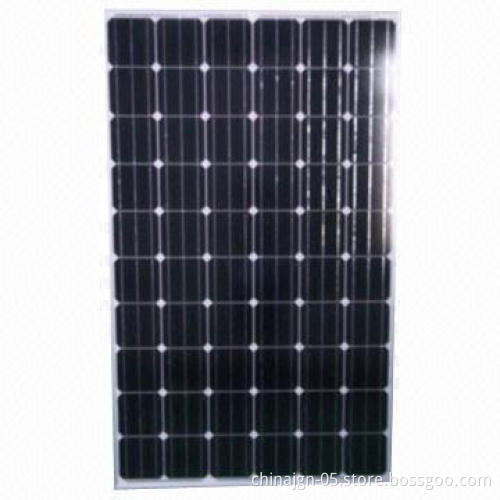

220W mono solar panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Material: monocrystalline solar silicone cells

Peak power: 220W

Nominal voltage (Vmpp): 29.2V

Nominal current (Impp): 7.5A

Open circuit voltage (Voc): 36.2V

Short-circuit current (Isc): 8.11A

Maximum voltage: 1000V

Power output tolerance: 0 to +3%

Standard testing condition AM1.5 1,000W/m² 25Deg

Temperature coefficient of Voc (%): -(2.23+/-0.1)mV/°C

Temperature coefficient of Isc (%): 0.065 +/-0.015%/°C

Temperature coefficient of Pmax (%): -(0.5+/-0.05)%/°C

Temperature coefficient of Im (%): +0.1/°C

Temperature coefficient of Vm (%): -0.38/°C

Number of cell (pcs): 6 x 10 (60)

Solar cell: 156 x 156mm

Frame: anodized aluminum profile

Dimensions: 1650 x 992 x 50mm

Weight: 19.5kg

40ft HQ could load: 532pcs (2pcs/carton)

Features:

High quality guarantee using 156 mm high conversion efficiencycrystalline silicon solar cells
High performance bypass diodes minimize the power drop causedby shade
High transmittance, low iron tempered glass
High performance EVA
A weatherproof back sheet and sandblast electrophorus isaluminum frame extend the application of modules greatly
Sealed, waterproof, multifunctional junction box gives highlevel of safety
25 years linear power warranty: 10 years at 90% of minimalrated power output, 25 years at 80% of minimal rated poweroutput

High quality guarantee using 156 mm high conversion efficiencycrystalline silicon solar cells

High performance bypass diodes minimize the power drop causedby shade

High transmittance, low iron tempered glass

High performance EVA

A weatherproof back sheet and sandblast electrophorus isaluminum frame extend the application of modules greatly

Sealed, waterproof, multifunctional junction box gives highlevel of safety

25 years linear power warranty: 10 years at 90% of minimalrated power output, 25 years at 80% of minimal rated poweroutput
