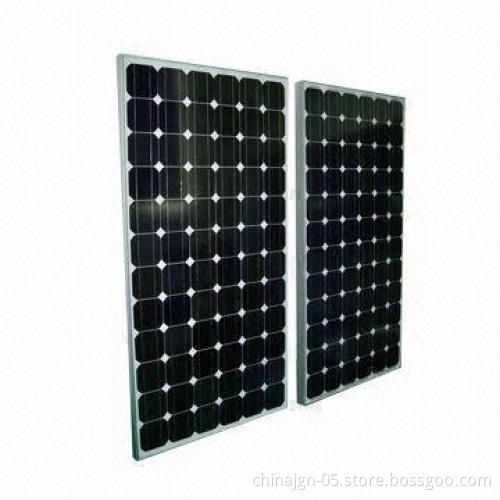

170 to 260W large solar modules, 156x156mm cell sized, used for solar power pump system
  • 170 to 260W large solar modules, 156x156mm cell sized, used for solar power pump system
170 to 260W large solar modules, 156x156mm cell sized, used for solar power pump system

170 to 260W large solar modules, 156x156mm cell sized, used for solar power pump system

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • 125/156mm high conversion efficiency crystalline silicon solarcells
    • High performance bypass diodes minimize power drop caused byshade
    • High transmittance, low iron tempered glass
    • High performance EVA, weatherproof back sheet and sandblastelectrophorus aluminum frame extend application of modulesgreatly
    • Sealed, waterproof, multifunctional junction box gives highlevel of safety
  • Specifications:
    • Large solar module: 100 to 300W
    • Maximum power: 170W
    • Maximum operating voltage: 36V
    • Maximum operating current: 4.72A
    • Open circuit voltage: 43V
    • Short circuit current: 5.19A
    • Number of cells: 72 pieces
    • Standard test conditions AM1.5
    • E: 1000W/m2
    • Temperature: 25°C
    • FF: 73%
    • Module size: 1580x800x50mm
    • Warranty: 25 years
  • 125/156mm high conversion efficiency crystalline silicon solarcells
  • High performance bypass diodes minimize power drop caused byshade
  • High transmittance, low iron tempered glass
  • High performance EVA, weatherproof back sheet and sandblastelectrophorus aluminum frame extend application of modulesgreatly
  • Sealed, waterproof, multifunctional junction box gives highlevel of safety
  • Large solar module: 100 to 300W
  • Maximum power: 170W
  • Maximum operating voltage: 36V
  • Maximum operating current: 4.72A
  • Open circuit voltage: 43V
  • Short circuit current: 5.19A
  • Number of cells: 72 pieces
  • Standard test conditions AM1.5
  • E: 1000W/m2
  • Temperature: 25°C
  • FF: 73%
  • Module size: 1580x800x50mm
  • Warranty: 25 years
