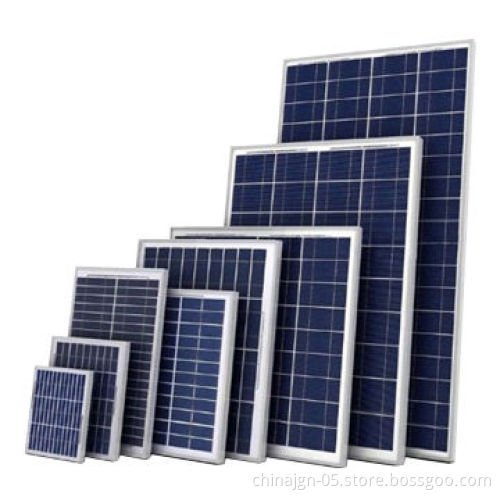

Poly Solar Panel PV Module, 10W (JGN10W-poly)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum power (Pm): 10W

Power tolerance (+3/-3%)

Voltage at max power (Vmp): 17.60V

Current at max power (Imp): 0.57A

Open circuit voltage (Voc): 21.80V

Short circuit current (Isc): 0.65A

Operating temperature: - 40 +85

Maximum system voltage: 700V

Maximum series fuse rating: 5A

Solar cell: polycrystalline silicon solar cell

No. of cells and connections: 36=4*9pcs

Dimensions of module: 403*250* 25mm

Current temperature coefficient: 3.5

Voltage temperature coefficient: -(176 10)mV/K

Power temperature coefficient: -(0.38 0.05)%/K

Warranty: Pm is not less than 90% in 12 years

Packaging and delivery:

Packing details: carton, wooden box, metal cabinet pallet and customized
