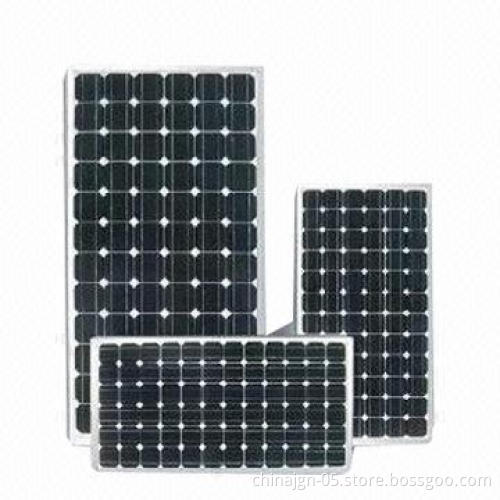

Solar Panel, 50-180W Maximum Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Model number: JGN-50M-180M

Maximum power: 50-180W

Open circuit voltage: 21.8/43.2V

Maximum power voltage: 17.2/18.1/34.2/35.2V

Short circuit current: 2.44/4.85/4.96/5.45A

Module operating temperature: -45-+85°C

Operating current: 2.22/4.4/3.6/4.96A

Maximum system voltage: 1,000V

Efficiency: 15-17%

Kind: mono and poly

Packing: pack by wooden case

Standard: 50-180W

Product description: cheap solar panel/solar power

Our competitive advantage:

Select high quality solar cell, with 16-17% efficieny

Poly and mono solar panel, very low price

Feature:

Construction:

Frame: aluminum alloy

Mono solar panel efficiency 17% and poly solar panel15-16%

High reliability with guaranteed +/-10% output powertolerance

Tempered glass laminated with aluminum frame

Life time: 20-30 years

Temperature co-efficiency: A=+1, 46mA, B=-79mV, RP/p=0.43

Power specification at 1kW/m²

Output cable: multi-contact connectors

Diodes: Three 10A, 1KV schottky by pass diodes included

Fromt high-transmission 32mm tempered glass

Back: TPT

CEncapsulant: EVA
