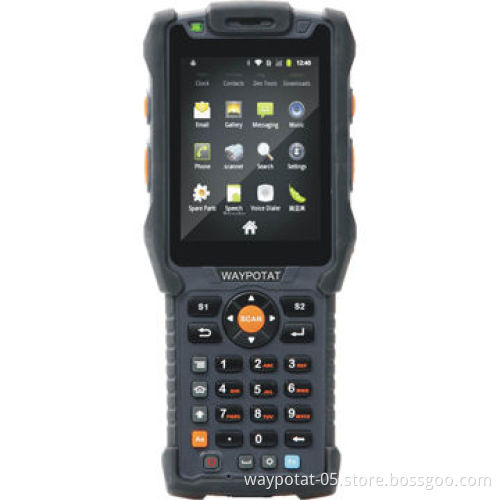

UHF RFID Handheld Terminal with 1D/2D Barcode, GPS, 3G, Wi-Fi/BT, Windows CE6.0

UHF RFID Handheld Terminal with 1D/2D Barcode, GPS, 3G, Wi-Fi/BT, Windows CE6.0

Get Latest Price

Payment Type:: TT, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union

Product Description

Dimensions: max 190 x 75 x 30mm

Hand grip: 90 x 60 x 25mm

Weight: 400g (includes battery)

Display: 3.5-inch TFT-LCD QVGA(240x320)/VGA(480×640)color touch screen

Keyboard: 33 keys (number/alphabetic keys, directional button, scan button, side keypad)

Input: Chinese, English, handwriting, support soft keyboard

Power: main battery removable, rechargeable 3.7V 4000mAh/3.8V4500mAh lithium battery pack

Slave battery: 240mAh lithium battery

RTC battery: individual RTC battery to keep clock at realtime

Performance characteristics:

OS: Windows CE6.0

CPU: 1GHz

Memory: ROM 512MB Nand Flash, RAM 512MB mobile DDR

Expansion: support microSD/TF up to 32G, SIM x 1

Audio: loudspeaker x 1, microphone x 1, earphone x 1

Interfaces: mini USB x 1, 3.5mm audio jack x 1

Barcode scanner:

1D laser decode capability: code 39, Codabar, code 128,discrete 2 of 5, IATA 2 of 5,

Interleaved 2 of 5, code 93, UPC A, UPC E0, EAN 8, EAN 13, MSI, EAN 128, UPC E1, Trioptic Code 39, Bookland EAN

Coupon code, RSS-limited, RSS-14, RSS-expanded

2D CMOS decode capability:

1D symbologies: UPC/EAN, bookland EAN, UCC coupon code, ESSNEAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR,

MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5, Korean3/5,Matrix 2/5, CODE 32, CODE 93, CODE 11, Inverse 1D, GS1 DataBar,composite codes

2D symbologies: PDF417, MicroPDF417, data matrix, data matrix inverse, MaxiCode, QR code, Aztec, Aztec Inverse

Postal codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX code, USPS 4CB/one code/intelligent mail, UPU FICS postal

Radio communication:

Wireless: LAN Wi-Fi 802.11 b/g/n, frequency range:65MB/sec

Bluetooth: Bluetooth Class2.1+EDR

WAN frequency range: GSM 850/900/1800/1900MHz

Data rate GPRS multi-slot Class 10: DL 85.6kbps/UL42.8kbps
