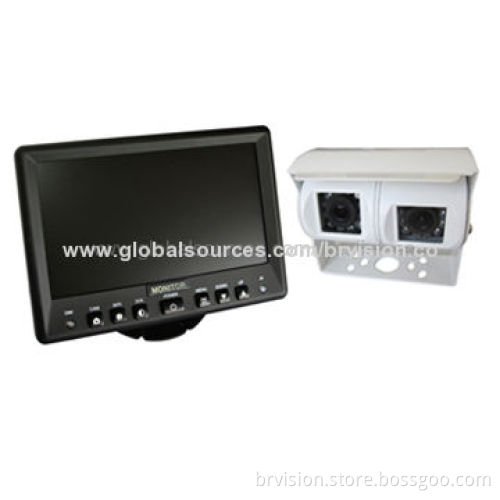

Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable
  • Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable
  • Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable
  • Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable
Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable
Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable
Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable

Truck Rearview System with 7-inch Vehicle Monitor and Water-resistant Camera, 20m Extension Cable

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • 7-inch TFT LCD monitor
    • Two video input
    • IR rearview camera
    • When selecting the reverse gear, it automatically switches into video 2
    • 20m extension cable
    • 12-24V DC for heavy duty
  • Specifications:
    • Screen size: 7-inch panel (diagonal length)
    • Input: 2-way video input
    • Systems: PAL and NTSC auto-switching
    • Resolution: 480 x RGB x 234 pixels
    • Power supply: 12-24V DC
    • Built-in speaker (optional)
    • Heavy-duty reversing
    • OSD menu: contrast, color, brightness are adjustable
    • Viewing angle range: (left/right) 65, (top) 40, (down) 15°
    • Camera:
      • Type high-resolution backup camera
      • Image sensor: 1/3-inch CCD
      • TV system: NTSC/PAL (optional)
    • Effective resolutions:
      • NTSC: 510 x 492
      • PAL: 500 x 582
    • Horizontal resolution: 420TVL
    • Lens angle: 120°
    • Minimum illumination: 0 lux (LED on)
    • IR LEDs: 10 pieces
    • Night vision distance: 45ft
    • Audio function
    • Operating temperature: -20 to 70°C, 95% RH (maximum)
    • Lens: f = 2.5/1.7mm
    • Size (L x W x H): 70 x 50 x 40mm
    • Net weight: 350g
    • Water-resistant rating: IP67
    • Shell material: aluminum alloy
  • 7-inch TFT LCD monitor
  • Two video input
  • IR rearview camera
  • When selecting the reverse gear, it automatically switches into video 2
  • 20m extension cable
  • 12-24V DC for heavy duty
  • Screen size: 7-inch panel (diagonal length)
  • Input: 2-way video input
  • Systems: PAL and NTSC auto-switching
  • Resolution: 480 x RGB x 234 pixels
  • Power supply: 12-24V DC
  • Built-in speaker (optional)
  • Heavy-duty reversing
  • OSD menu: contrast, color, brightness are adjustable
  • Viewing angle range: (left/right) 65, (top) 40, (down) 15°
  • Camera:
    • Type high-resolution backup camera
    • Image sensor: 1/3-inch CCD
    • TV system: NTSC/PAL (optional)
  • Effective resolutions:
    • NTSC: 510 x 492
    • PAL: 500 x 582
  • Horizontal resolution: 420TVL
  • Lens angle: 120°
  • Minimum illumination: 0 lux (LED on)
  • IR LEDs: 10 pieces
  • Night vision distance: 45ft
  • Audio function
  • Operating temperature: -20 to 70°C, 95% RH (maximum)
  • Lens: f = 2.5/1.7mm
  • Size (L x W x H): 70 x 50 x 40mm
  • Net weight: 350g
  • Water-resistant rating: IP67
  • Shell material: aluminum alloy
  • Type high-resolution backup camera
  • Image sensor: 1/3-inch CCD
  • TV system: NTSC/PAL (optional)
  • NTSC: 510 x 492
  • PAL: 500 x 582
