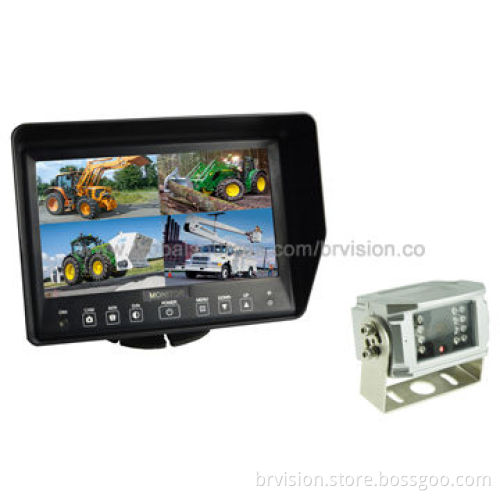

7.0-inch Rearview Systems, Include Waterproof Monitor and CCD Dome Camera, for Security

7.0-inch Rearview Systems, Include Waterproof Monitor and CCD Dome Camera, for Security

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key features:

Waterproof design, built-in quad control box function
Rear view monitor support four camera inputs
With remote controller
Single view/split view/quad view selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuitprotection
IR rearview camera DC 12-24V for heavy duty

Monitor specifications:

7-inch TFT LCD monitor, 16:9
IP rating: IP67
Wide view angle (CR>10): (up/down/left/right):40/40/60/60
Resolution: 400 RGB x 234 dots
Color system: PAL/NTSC (selectable)
Power requirement: 12/24V DC
Power consumption: 5W
Operating temperature: -20 to +70°C
Storage temperature: -30 to +80°C
Dimensions: (L x W x D) 183 x125 x 38mm

Camera specifications:

Type high resolution backup camera
Image sensor 1/4 inch Sony/Sharp CCD
TV system NTSC/PAL
Optional effective pixels:
- N: 510¡Á492 pixels
- P: 500¡Á582 pixels horizontal
Resolution: 420 TV line
Lens angle: 120°
Minimum illumination: 0lux (LED on)
IR LED 10pcs night vision distance 45 feet
Operating temperature: -20-+70°C, RH 95%
Max lens f: 2.8mm
Power supply: DC 12V
Waterproof rate: IP68
Shell materials: aluminum alloy

Waterproof design, built-in quad control box function

Rear view monitor support four camera inputs

With remote controller

Single view/split view/quad view selectable

7 languages OSD display

PAL/NTSC optional, mirror/normal image optional

Automatically turn on when the reversing gear is engaged

Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4

With high-low voltage protection and short circuitprotection

IR rearview camera DC 12-24V for heavy duty

7-inch TFT LCD monitor, 16:9

IP rating: IP67

Wide view angle (CR>10): (up/down/left/right):40/40/60/60

Resolution: 400 RGB x 234 dots

Color system: PAL/NTSC (selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperature: -20 to +70°C

Storage temperature: -30 to +80°C

Dimensions: (L x W x D) 183 x125 x 38mm

Type high resolution backup camera

Image sensor 1/4 inch Sony/Sharp CCD

TV system NTSC/PAL

Optional effective pixels:

N: 510¡Á492 pixels
P: 500¡Á582 pixels horizontal

Resolution: 420 TV line

Lens angle: 120°

Minimum illumination: 0lux (LED on)

IR LED 10pcs night vision distance 45 feet

Operating temperature: -20-+70°C, RH 95%

Max lens f: 2.8mm

Power supply: DC 12V

Waterproof rate: IP68

Shell materials: aluminum alloy

N: 510¡Á492 pixels

P: 500¡Á582 pixels horizontal
