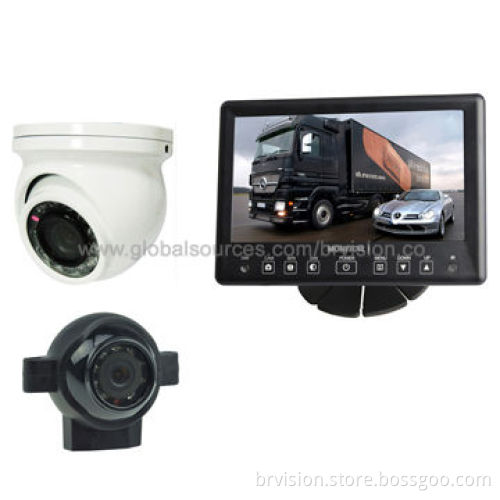

Reversing System with 7.0-inch Waterproof Monitor and CCD Dome Camera for Surveillance
  • Reversing System with 7.0-inch Waterproof Monitor and CCD Dome Camera for Surveillance
Reversing System with 7.0-inch Waterproof Monitor and CCD Dome Camera for Surveillance

Reversing System with 7.0-inch Waterproof Monitor and CCD Dome Camera for Surveillance

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Monitor specifications:
    • 7.0 inches TFT LCD monitor: 16:9
    • PAL and NTSC auto switching
    • Wide view angle (CR>10):
      • (Up/down): 15/40
      • (Left/right): 65/65
    • Brightness: 450cd/m²
    • Resolution: 800 x RGB x 480
    • Mirror/normal switch
    • Menu is workable even if under mirror image condition
    • Day/ night sensor for automatic adjustment
    • Built-in speaker
    • Color system: PAL/NTSC (auto)
    • IP rating: IP67
    • With soon respond: 20ms at 25°C
    • Power requirement: 12/24VDC
    • Power consumption: d5W
    • Operating temperature: 20 to 70°C
    • Storage temperature: 30 to 80°C
  • Camera specifications:
    • Type high-resolution backup camera
    • Image sensor: 1/3-inch CCD
    • TV system NTSC/PAL (optional)
    • Effective pixels:
      • N: 510 x 492 pixels
      • P: 500 x 582 pixels
    • Horizontal resolution: 420TVL
    • Lens angle: 120°:
      • Minimum illumination: 0 lux (LED on)
      • IR LED 10 pieces for night vision distance: 45ft
      • Audio function
      • Operating temperature: -20 to 70°C, RH 95% (maximum)
      • Lens: f = 2.5/1.7mm
      • Power supply: 12V DC
      • Size (L x W x H): 70 x 50 x 40mm
      • Net weight: 350g
      • Waterproof rate: IP68
      • Shell material: aluminum alloy
  • Dome camera specifications:
    • Image sensor: 1/3 inch color CCD
    • Resolution: 420TVL
    • Waterproof rate: IP65
    • Electronics shutter: 1/60-1/5,000 (S)
    • Lens: 2.8/2.1mm
    • Wide angle: 120°
    • Power: 12V DC (±10%)
    • Night vision function
  • 7.0 inches TFT LCD monitor: 16:9
  • PAL and NTSC auto switching
  • Wide view angle (CR>10):
    • (Up/down): 15/40
    • (Left/right): 65/65
  • Brightness: 450cd/m²
  • Resolution: 800 x RGB x 480
  • Mirror/normal switch
  • Menu is workable even if under mirror image condition
  • Day/ night sensor for automatic adjustment
  • Built-in speaker
  • Color system: PAL/NTSC (auto)
  • IP rating: IP67
  • With soon respond: 20ms at 25°C
  • Power requirement: 12/24VDC
  • Power consumption: d5W
  • Operating temperature: 20 to 70°C
  • Storage temperature: 30 to 80°C
  • (Up/down): 15/40
  • (Left/right): 65/65
  • Type high-resolution backup camera
  • Image sensor: 1/3-inch CCD
  • TV system NTSC/PAL (optional)
  • Effective pixels:
    • N: 510 x 492 pixels
    • P: 500 x 582 pixels
  • Horizontal resolution: 420TVL
  • Lens angle: 120°:
    • Minimum illumination: 0 lux (LED on)
    • IR LED 10 pieces for night vision distance: 45ft
    • Audio function
    • Operating temperature: -20 to 70°C, RH 95% (maximum)
    • Lens: f = 2.5/1.7mm
    • Power supply: 12V DC
    • Size (L x W x H): 70 x 50 x 40mm
    • Net weight: 350g
    • Waterproof rate: IP68
    • Shell material: aluminum alloy
  • N: 510 x 492 pixels
  • P: 500 x 582 pixels
  • Minimum illumination: 0 lux (LED on)
  • IR LED 10 pieces for night vision distance: 45ft
  • Audio function
  • Operating temperature: -20 to 70°C, RH 95% (maximum)
  • Lens: f = 2.5/1.7mm
  • Power supply: 12V DC
  • Size (L x W x H): 70 x 50 x 40mm
  • Net weight: 350g
  • Waterproof rate: IP68
  • Shell material: aluminum alloy
  • Image sensor: 1/3 inch color CCD
  • Resolution: 420TVL
  • Waterproof rate: IP65
  • Electronics shutter: 1/60-1/5,000 (S)
  • Lens: 2.8/2.1mm
  • Wide angle: 120°
  • Power: 12V DC (±10%)
  • Night vision function
