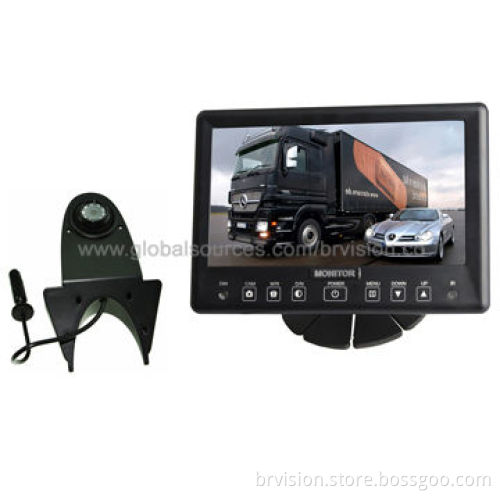

7.0-inch Quad Rear-view Systems with IP68 Waterproof Monitor/Shark Camera for Surveillance

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

7.0 inches TFT LCD monitor: 16:9
PAL and NTSC auto switching
Wide viewing angle (CR>10):
- (Up/ down): 15/40
- (Left/right): 65/65
Brightness: 450cd/m²
Resolution: 800 x RGB x 480
Mirror/normal switch
Menu is workable even if under mirror image condition
Day/night sensor for automatic adjustment
Built-in speaker
Color system: PAL/NTSC (auto)
IP rating: IP67
With soon respond: 20ms at 25°C
Power requirement: 12/24V DC
Power consumption: d5W
Operating temperature: 20 to 70°C
Storage temperature: -30 to 80°C

Camera specifications:

Type: high-resolution backup camera
Image sensor: 1/3-inch CCD
TV system: NTSC/PAL (optional)
Effective pixels:

N: 510 x 492 pixels

P: 500 x 582 pixels

7.0 inches TFT LCD monitor: 16:9

PAL and NTSC auto switching

Wide viewing angle (CR>10):

(Up/ down): 15/40
(Left/right): 65/65

Brightness: 450cd/m²

Resolution: 800 x RGB x 480

Mirror/normal switch

Menu is workable even if under mirror image condition

Day/night sensor for automatic adjustment

Built-in speaker

Color system: PAL/NTSC (auto)

IP rating: IP67

With soon respond: 20ms at 25°C

Power requirement: 12/24V DC

Power consumption: d5W

Operating temperature: 20 to 70°C

Storage temperature: -30 to 80°C

(Up/ down): 15/40

(Left/right): 65/65

Type: high-resolution backup camera

Image sensor: 1/3-inch CCD

TV system: NTSC/PAL (optional)

Effective pixels:

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0 lux (LED on)

IR LED 10 pieces for night vision distance: 45ft

Audio function

Operating temperature: -20 to 70°C, RH 95% (maximum)

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

Shell material: aluminum alloy
