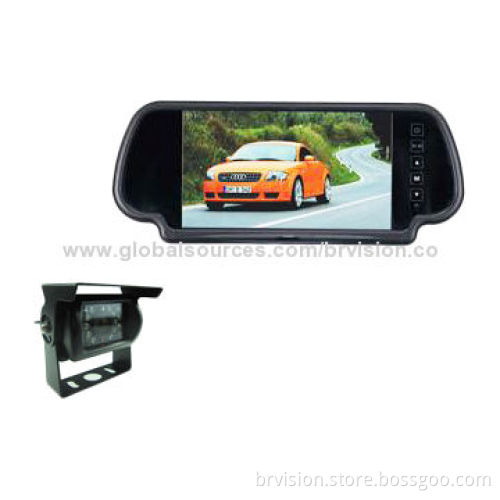

Reversing Mirror Monitor with Clip Installation Method and High-brightness Glass, for Surveillance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Monitor specifications:

Camera specifications:

Screen size: 7-inch panel (diagonal length)

Input: 1-way video input

System: PAL and NTSC auto switching

Resolution: 480 x RGB x 234 pixels

Power supply range: 12-24V DC

Built-in speaker (optional)

Heavy-duty reversing

OSD menu

With contrast, color, brightness adjustments

Viewing angle range: (left/right) 65°, (top) 40° and (down) 15°

Shell material: aluminum alloy

Type: high-resolution backup camera

Image sensor: 1/4-inch CMOS

TV system: NTSC/PAL (optional)

Effective pixels:

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0 lux (LED on)

IR LED: 18 pieces

Night vision distance: 45ft

Audio function

Operating temperature: -20 to 70°C, 95% RH (maximum)

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

N: 510 x 492

P: 500 x 582
