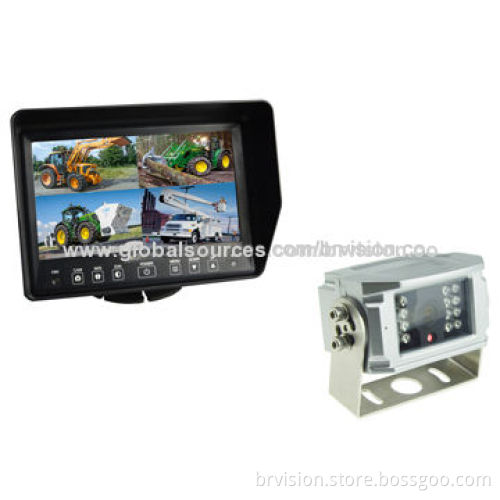

Rear Vision System with IP67 Waterproof Monitor and WDR Camera for Vehicle Surveillance

Rear Vision System with IP67 Waterproof Monitor and WDR Camera for Vehicle Surveillance

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key features:

Waterproof design
Built-in Quad control box function
Rear view monitor support four camera inputs
With remote controller
Single view/split view/Quad view selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image optional
Automatically turn-on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short-circuit protection
Power supply: 12-24V for heavy duty

Monitor specifications:

7.0-inch TFT LCD monitor: 16：9
PAL and NTSC auto switching
Wide viewing angle (CR >10):
- (up/ down): 15/40
- (left/right): 65/65
Brightness (cd/m²): 450
Resolution: 800 x RGB x 480 pixels
Mirror/normal switch
Menu is workable even if under mirror image condition
Day/night sensor for automatic adjustment
Built-in speaker
Color system: PAL/NTSC(AUTO)
IP rating: IP67
With soon respond (ms) (at 25℃): 20
Power requirement: 12/24V DC
Power consumption: ≤5W
Operating temperature: -20 to +70℃
Storage temperature: -30 to +80℃

Camera specifications:

Type high-resolution backup camera
Image sensor: 1/4-inch CCD
TV system NTSC/PAL (optional)
Effective pixels:
- N: 510 x 492 pixels
- P: 500 x 582 pixels
Horizontal resolution: 420TVL
Lens angle: 120°:
Minimum illumination: 0 Lux (LED on)
IR LED 10 pieces for night vision distance: 45ft
Audio function
Operating temperature: -20 to 70°C, 95% RH (maximum)
Lens: f = 2.5/1.7mm
Power supply: 12V DC
Size (L x W x H): 70 x 50 x 40mm
Net weight: 350g
Waterproof rate: IP68
Shell material: aluminum alloy

Waterproof design

Built-in Quad control box function

Rear view monitor support four camera inputs

With remote controller

Single view/split view/Quad view selectable

7 languages OSD display

PAL/NTSC optional, mirror/normal image optional

Automatically turn-on when the reversing gear is engaged

Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4

With high-low voltage protection and short-circuit protection

Power supply: 12-24V for heavy duty

7.0-inch TFT LCD monitor: 16：9

PAL and NTSC auto switching

Wide viewing angle (CR >10):

(up/ down): 15/40
(left/right): 65/65

Brightness (cd/m²): 450

Resolution: 800 x RGB x 480 pixels

Mirror/normal switch

Menu is workable even if under mirror image condition

Day/night sensor for automatic adjustment

Built-in speaker

Color system: PAL/NTSC(AUTO)

IP rating: IP67

With soon respond (ms) (at 25℃): 20

Power requirement: 12/24V DC

Power consumption: ≤5W

Operating temperature: -20 to +70℃

Storage temperature: -30 to +80℃

(up/ down): 15/40

(left/right): 65/65

Type high-resolution backup camera

Image sensor: 1/4-inch CCD

TV system NTSC/PAL (optional)

Effective pixels:

N: 510 x 492 pixels
P: 500 x 582 pixels

Horizontal resolution: 420TVL

Lens angle: 120°:

Minimum illumination: 0 Lux (LED on)

IR LED 10 pieces for night vision distance: 45ft

Audio function

Operating temperature: -20 to 70°C, 95% RH (maximum)

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

Shell material: aluminum alloy

N: 510 x 492 pixels

P: 500 x 582 pixels
