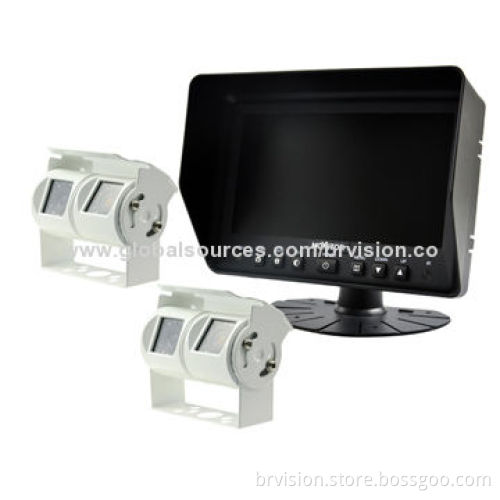

Rear-view System 7-inch Monitor with Dual Lens Waterproof Camera for trailer and agricultural machin

Rear-view System 7-inch Monitor with Dual Lens Waterproof Camera for trailer and agricultural machin

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

7-inch TFT LCD monitor
Two-video input
IR rear-view camera
When selecting the reverse gear, it automatically switches into video 2
20m extension cable
12-24V DC for heavy duty

Specifications:

Screen size: 7-inch panel (diagonal length)
Input: 2-way video input
Systems: PAL and NTSC auto switching
Resolution: 480 x R-G-B x 234 pixels
Power supply range: 12-24V DC
Built-in speaker (optional)
Heavy-duty reversing
OSD menu: contrast, color, brightness adjustable
Viewing angle range: (left/right) 65°, (top) 40°, (down) 15°

Camera specifications:

Type: high-resolution backup camera
Image sensor: 1/3-inch CCD
TV systems: NTSC/PAL (optional)
Effective pixels:
- N: 510 x 492 pixels
- P: 500 x 582 pixels
Horizontal resolution: 420TVL
Lens angle: 120°
Minimum illumination: 0lux (LED on)
IR LED 10 pieces for night-vision distance: 45ft
Audio function
Operating temperatures: -20 to 70°C, RH 95% (maximum)
Lens: f = 2.5/1.7mm
Power supply: 12V DC
Size (L x W x H): 70 x 50 x 40mm
Net weight: 350g
Waterproof rate: IP68
Shell material: aluminum alloy

BR-RVC13:

Image sensor: 1/3-inch color Sony CCD
Resolution: 480TVL
Electronics shutter range: 1/60-1/5,000 (seconds)
IP rating: IP68
Wide angles: 95/120°
Power supply: 12V DC (±10%)
Night-vision IR lamp
Rain/sun shutter provided to protect your camera
Easy to install

7-inch TFT LCD monitor

Two-video input

IR rear-view camera

When selecting the reverse gear, it automatically switches into video 2

20m extension cable

12-24V DC for heavy duty

Screen size: 7-inch panel (diagonal length)

Input: 2-way video input

Systems: PAL and NTSC auto switching

Resolution: 480 x R-G-B x 234 pixels

Power supply range: 12-24V DC

Built-in speaker (optional)

Heavy-duty reversing

OSD menu: contrast, color, brightness adjustable

Viewing angle range: (left/right) 65°, (top) 40°, (down) 15°

Type: high-resolution backup camera

Image sensor: 1/3-inch CCD

TV systems: NTSC/PAL (optional)

Effective pixels:

N: 510 x 492 pixels
P: 500 x 582 pixels

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0lux (LED on)

IR LED 10 pieces for night-vision distance: 45ft

Audio function

Operating temperatures: -20 to 70°C, RH 95% (maximum)

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

Shell material: aluminum alloy

N: 510 x 492 pixels

P: 500 x 582 pixels

Image sensor: 1/3-inch color Sony CCD

Resolution: 480TVL

Electronics shutter range: 1/60-1/5,000 (seconds)

IP rating: IP68

Wide angles: 95/120°

Power supply: 12V DC (±10%)

Night-vision IR lamp

Rain/sun shutter provided to protect your camera

Easy to install
