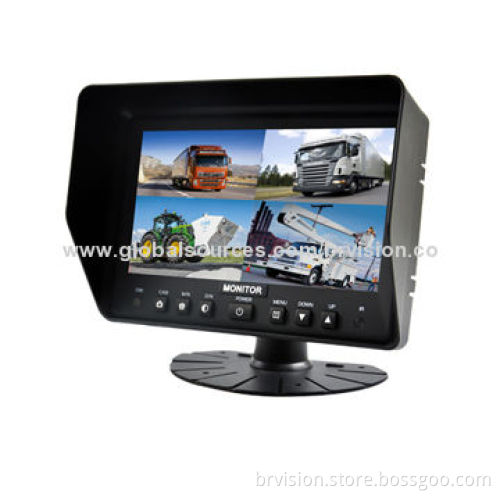

Rearview System, 7-inch monitor, water-resistant and anti-vandal dome camera, ideal for surveillance

Rearview System, 7-inch monitor, water-resistant and anti-vandal dome camera, ideal for surveillance

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key features:

Built-in quad control box function
Rearview monitor support four camera input
With remote controller
Single view/split view/quad view selectable
Seven languages OSD display
PAL/NTSC optional, mirror/normal image (optional)
Automatically turn on when the reversing gear is engaged
Trigger priority: cam 1>, cam 2>, cam 3>, cam 4
With high/low-voltage protection and short-circuit protection
IR rearview camera
12 to 24V DC for heavy-duty

Monitor specification:

7-inch TFT LCD monitor, 16:9
Wide viewing angle (CRI:>10): (up/down/left/right): 40/40/60/60°
Resolution: 400 RGB x 234 dots
Color systems: PAL/NTSC (selectable)
Power requirement: 12/24V DC
Power consumption: 5W
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Dimension (L x W x D): 183 x 125 x 38mm

Camera specification:

High-resolution backup camera
Image sensor: 1/3-inch CCD
TV systems: NTSC/PAL (optional)
Horizontal resolution: 420TVL
Lens angle: 120°
Minimum illumination: 0Lux (LED-on)
IR LED: 10 pieces
Night vision distance: 45ft
Operating temperature: -20 to70°C, 95% RH
Lens: f = 2.5/1.7mm
Voltage: 12V DC
Size (L x W x H): 70 x 50 x 40mm
Water-resistant rate: IP68
Shell material: aluminum alloy

Built-in quad control box function

Rearview monitor support four camera input

With remote controller

Single view/split view/quad view selectable

Seven languages OSD display

PAL/NTSC optional, mirror/normal image (optional)

Automatically turn on when the reversing gear is engaged

Trigger priority: cam 1>, cam 2>, cam 3>, cam 4

With high/low-voltage protection and short-circuit protection

IR rearview camera

12 to 24V DC for heavy-duty

7-inch TFT LCD monitor, 16:9

Wide viewing angle (CRI:>10): (up/down/left/right): 40/40/60/60°

Resolution: 400 RGB x 234 dots

Color systems: PAL/NTSC (selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C

Dimension (L x W x D): 183 x 125 x 38mm

High-resolution backup camera

Image sensor: 1/3-inch CCD

TV systems: NTSC/PAL (optional)

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0Lux (LED-on)

IR LED: 10 pieces

Night vision distance: 45ft

Operating temperature: -20 to70°C, 95% RH

Lens: f = 2.5/1.7mm

Voltage: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Water-resistant rate: IP68

Shell material: aluminum alloy
