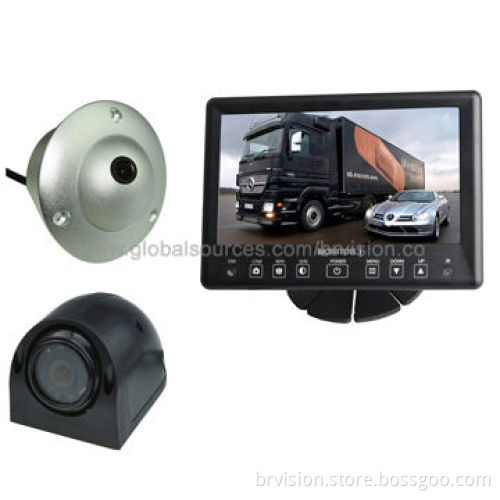

7.0-inch Rear-view System with IP67 Waterproof Monitor and CCD Dome Camera

7.0-inch Rear-view System with IP67 Waterproof Monitor and CCD Dome Camera

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Monitor:

7.0-inch TFT LCD monitor: 16:9

PAL and NTSC auto-switching

Wide viewing angle (CRI: >10Ra):

Up/down: 15/40°

Left/right: 65/65°

Brightness: 450cd/m²

Resolution: 800 x RGB x 480P

Mirror/normal switch

Menu is workable even if under mirror image condition

Day/night sensor for automatic adjustment

Built-in speaker

Color systems: PAL/NTSC (automatic)

IP rate: IP67

With soon response (at 25°C): 20 minutes

Power requirement: 12/24V DC

Power consumption: d5W

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Dome camera:

Image sensor: 1/3-inch colored CCD

Resolution: 420TVL

Waterproof rate: IP65

Electronic shutter speed: 1/60-1/5,000 seconds

Lens: 2.8/2.1mm

Wide angle: 120°

Power supply: 12V DC (±10%)

Night-vision function

Camera:

Type: high-resolution backup camera

Image sensor: 1/3-inch CCD

TV system: NTSC/PAL (optional)

Effective pixels:

NTSC: 510 x 492 pixels
PAL: 500 x 582 pixels

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0 Lux (LED-on)

IR LEDs: 10 pieces for night-vision distance of 45ft

Audio function

Operating temperature: -20 to 70°C, 95% RH (maximum)

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Dimensions (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

Shell material: aluminum alloy

NTSC: 510 x 492 pixels

PAL: 500 x 582 pixels
