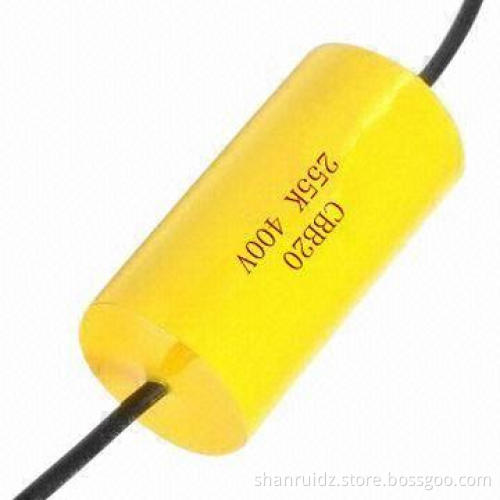

Metallized Polypropylene Film Capacitor, Axia Shape for PVC Wire with Epoxy Resin

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Construction:

Non-inductively wound with metallized polypropylene film asdielectric/electrode and copper-clad steel leads or flexible cordand outer wrapping with polyester adhesive tape and end sealed withepoxy resin

Specifications:

Climate condition: -40 to 85/110°C
Rated voltage: 100, 250, 400 and 630V
Capacitance range: 0.010 to 33¼F
Capacitance tolerance: ±5% (J), ±10% (K)
Voltage-proof: 1.6UR (5S)
Dissipation factor: d0.0010 1kHz, 20°C
Temperature: 40 ±2°C
Humidity: 93% RH
Dissipation factor (1kHz):
- Increasing: d0.002
- Applying voltage: 1.25 x rate voltage

Features:

Small size, lightweight with good self-healing effect
Non-inductive construction, down-leads axially andhorizontally
Very low-loss at high-frequency, suitable for high-current,could bear the high-current impactive
Have well voltage-proof features under the frequency ACcurrent
High-insulation resistance, long life due to self-healingeffect
Good capacitance stability

Using areas:

High-frequency, DC/AC and impulsion high-current conditions inheavy current such as filtering and impulse
Such as power amplifiers, welder machines and more
Would be used in the all CBB21 complaint conditions

Packing details:

Bulk package (loose in bag), paper box, the sizes of our boxesare 42 x 32 x 28, 54 x 36 x 28 or 56 x 36 x 29mm
We often pack 5, 10, 5, 20K/piece (according to the dimensionsof the products in each box)

Our services:

Your enquiry related to our products or prices will be repliedin 24 hours
Well trained and experienced staffs to answer all yourquestions in fluent English
Exclusive and unique solution can be provided to our customerby well-trained and professional engineers who have more than 30years experience
Customized designs are available
